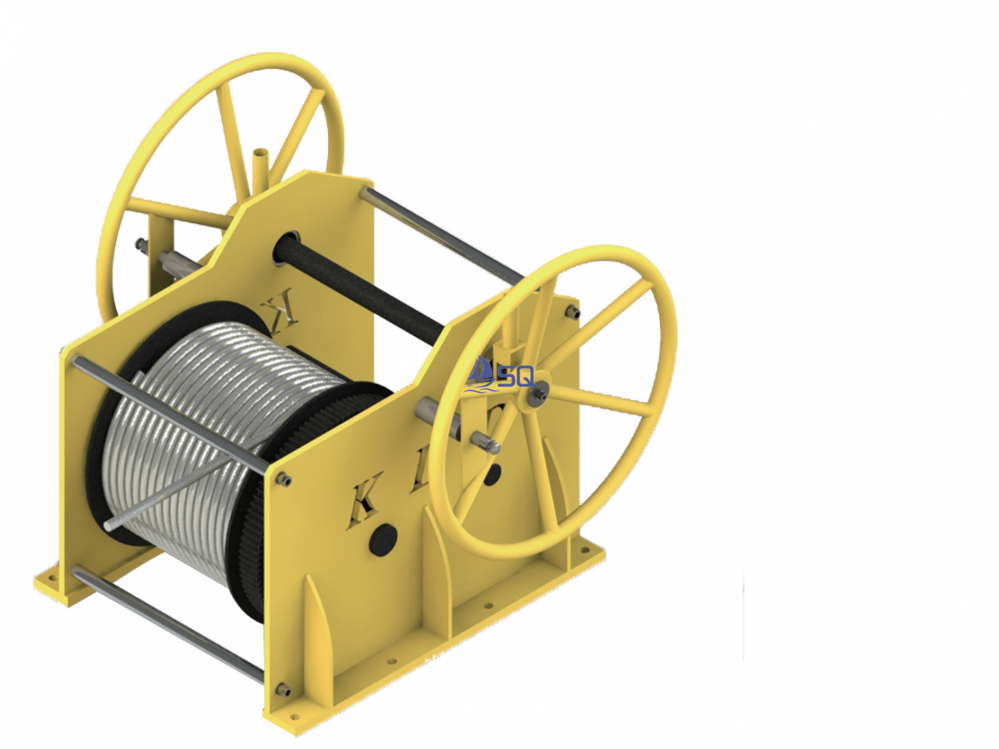

The large mooring hand operated winch is used for mooring operation and ground anchor fixing when the ship is sailing and docked at the shore.
1. Secondary transmission structure, striving for the maximum gear transmission ratio, ensuring the minimum structural appearance, time-saving and labor-saving, relatively small in size, and light in weight.
2. The horizontal traction or pulling brake structure can be in a self-locking state at any time. Ensure reliable braking. Turning the rope forward and retracting the rope in reverse can be achieved without manually moving the ratchet mechanism.
3. Both side can be manually shaken, eight by one person to the left or right, or by two people together if necessary.
4. Large capacity rope barrel design, with a maximum capacity of 100meters.
|
Model |
Rated load |
Reduction ratio |
Rope diam |
Rope capacity |
|
PJY-3-2000 |
2000kgs |
1:18 |
12mm |
100m |
|
PJY-3-5000 |
5000kgs |
1:18 |
22mm |
100m |
