Contains intelligent algorithms, for accurate and reliable fire detection.
◆ Product Features
Ultra-thin structure, low power design
Comes with a CPU to automatically determine the fire alarm
Two-bus and non-polar design
Strong resistance to moisture, can be used in places with large interference
Write address coding using address code programmer, no longer use dial switch
| Technical standard | Meet the requirements of GB 4715-2005 |
| Operating Voltage | DC18～26V |
| Monitor current | ≤350uA |
| Alarm current | ≤1.5mA |
| Confirmation lamp (red) | Flash when running, always on when alarm |
| Line system |
Two alarm buses: T+, T- (No polarity) |
| Operating temperature | -10℃～+55℃ |
| Relative humidity | ≤95% |
| Dimensions (without base) | Φ90.5mm、H38 mm |
| Weight | About 69g |
| Color | White |
◆ Wiring diagram

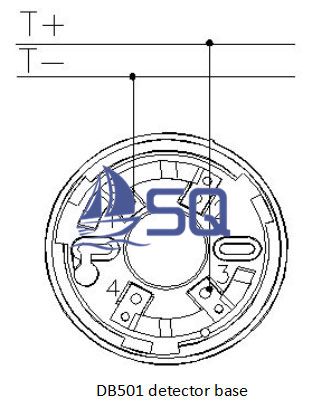

Wiring diagram for JTY-GD-501 Point type photoelectric smoke detector base
Wiring instructions
1, 3 terminal: T+, T- alarm bus (Non-polarity)
