The workpiece is placed on the turntable, and then continuously through the blasting area,it helps the workpiece surface getting consistent processing effect. The processing method of this machine is divided into dividing positioning processing and batch processing. This type of shot blasting machine is suitable for a variety of applications for workpiece, with different size, shape and geometry, and also the precision of the workpiece can be easily processed in this shot blasting machine.
The
rotating table shot-blasting machines are the most simple, versatile and
economic solution to the surface treatment needs.

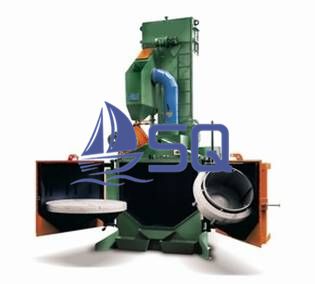

The parts are loaded on the rotating table: their lateral and top surfaces are
subject to the shots thrown by the turbines.
The machine does not require a pit, and is supplied complete with a
self-cleaning dry cartridges dust collector.
Cleaning of dies,forgings,castings,welded and braised parts.
This type of shot blasting machine can be designed and produced according to
your parts dimension, weight and productivity individually.
|
Item |
Unit |
QTD3512 |
QTD3512F |
QTD3525 |
QTD3525F |
|
Size of cleaning chamber |
mm |
φ1350×560 |
φ1350×560 |
φ2654×560 |
φ2654×560 |
|
Size of work-piece |
mm |
600×250×250 |
600×250×500 |
1000×500×250 |
1000×500×250 |
|
Turntable diameter |
mm |
φ1200 |
φ1200 |
φ2500 |
φ2500 |
|
Turntable loading |
kg |
400 |
400 |
1000 |
1000 |
|
Blast wheel flow rate |
kg/min |
200 |
2×120 |
2×250 |
2×250 |
|
Blast wheel power |
kw |
11 |
7.5×2 |
15×2 |
15×2 |
|
Elevator volume |
t/h |
15 |
15 |
30 |
30 |
|
Separator volume |
t/h |
15 |
15 |
30 |
30 |
|
Abrasive initial filling |
kg |
400 |
350 |
1500 |
1500 |
|
Ventilation capacity |
m3/h |
2800 |
2800 |
5200 |
5200 |
|
Power(excluding dedusting) |
kw |
17.3 |
18.7 |
34 |
35.2 |
