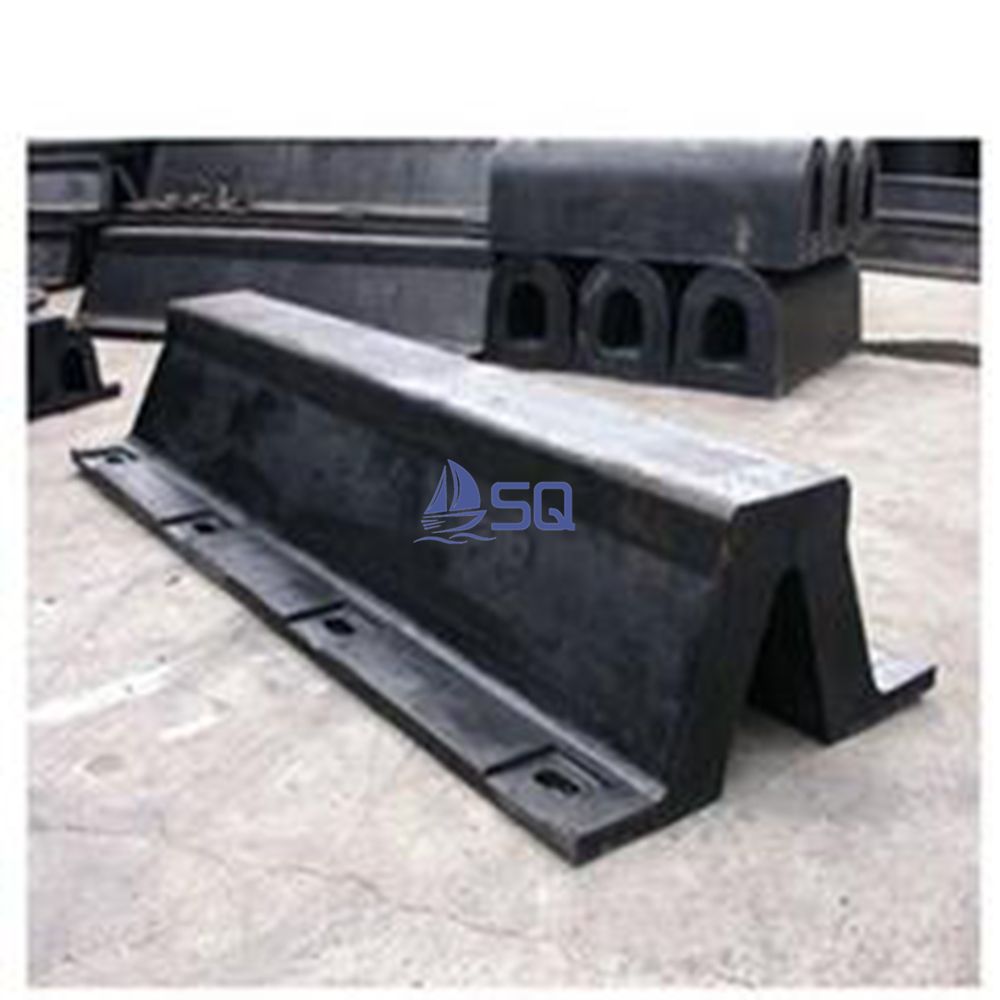

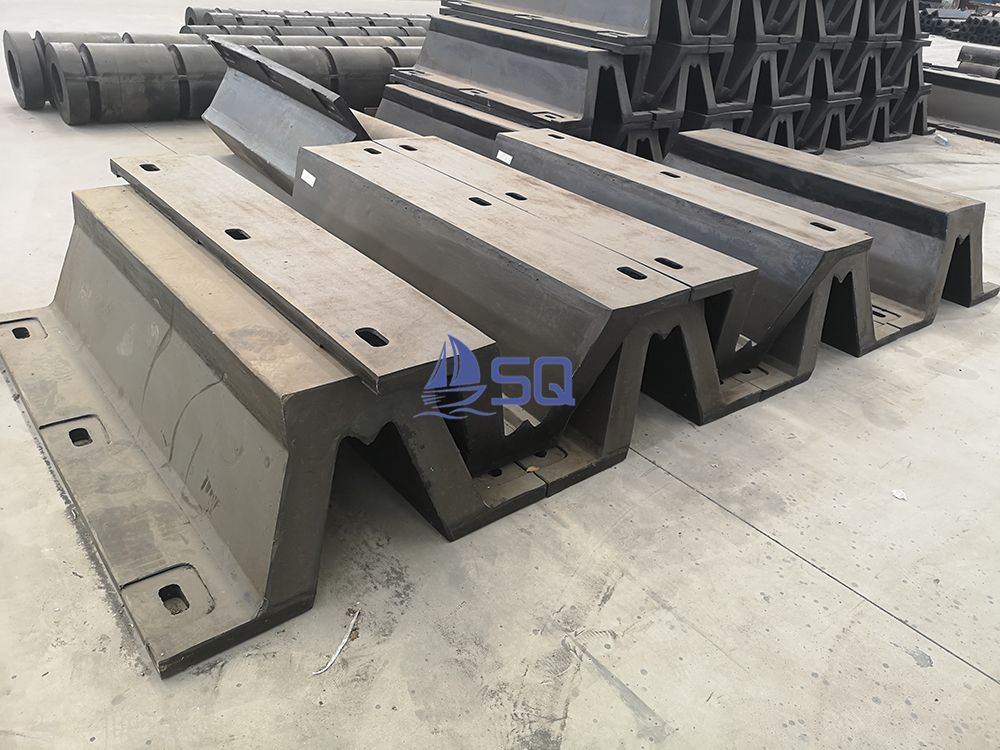

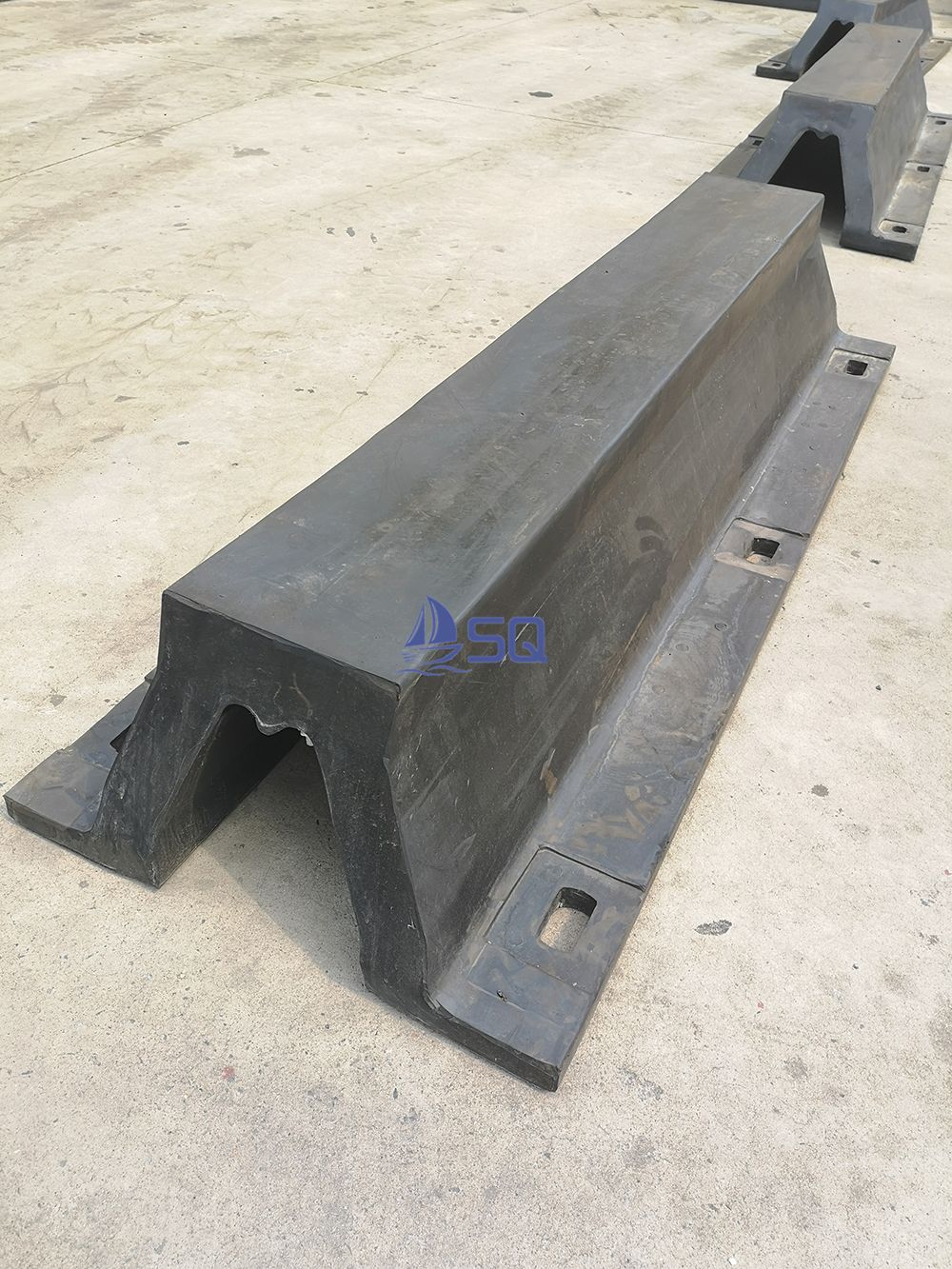

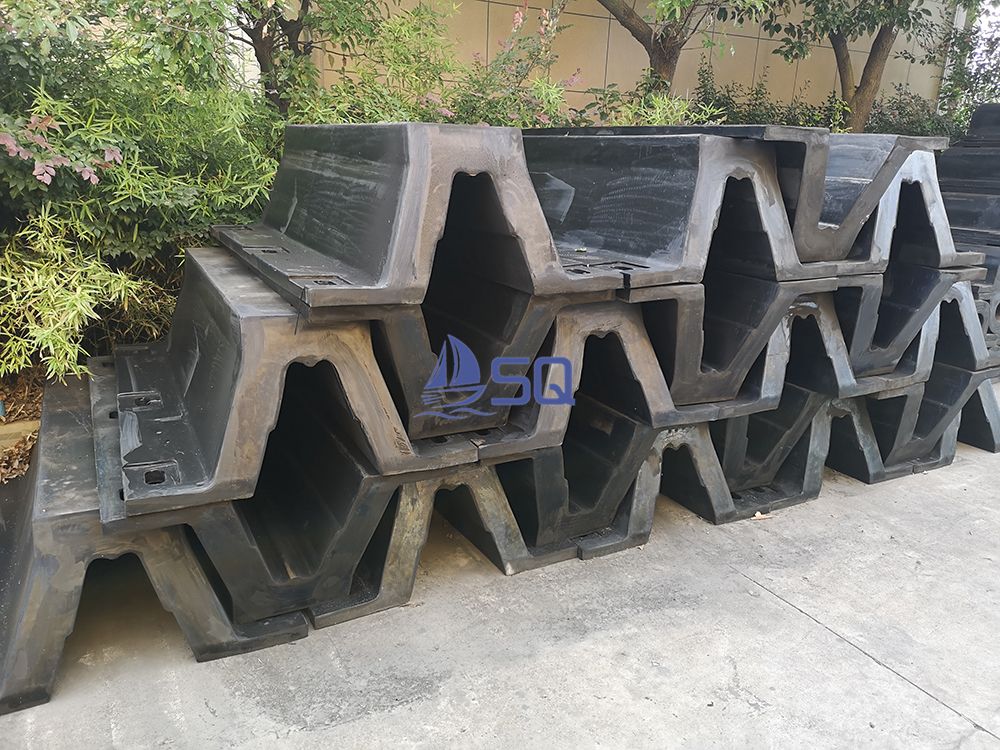

SA Super Arch Rubber Fender

Feature

1.High energy absorption and low reaction force.

2.High stress concetration.

3.Easy replacement firm for installation.

Specification

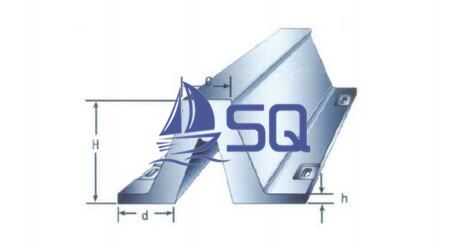

Model	B(mm)	b(mm)	C(mm)	d(mm)	H(mm)	h(mm)
SA-A200H	400	320	145	128	200	30
SA-A250H	500	410	175	160	250	33
SA-A300H	600	490	225	196	300	33
SA-A400H	800	670	300	260	400	40
SA-A500H	1000	840	375	325	500	45
SA-A600H	1200	1010	450	390	600	54
SA-A800H	1600	1340	600	520	800	72
SA-A1000H	2000	1680	750	650	1000	90

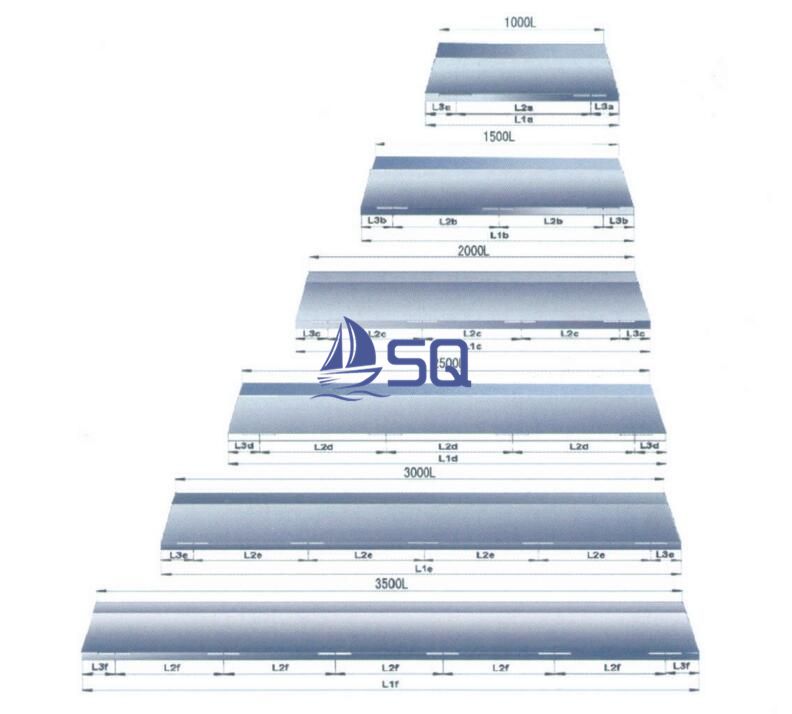

1000L						1500L

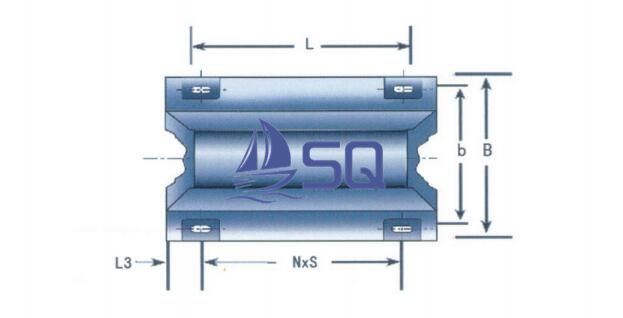

Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）		Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）
SA-A200H-1000L	1100	860	120	62		SA-A200H-1500L	1600	680	120	91
SA-A250H-1000L	1125	865	130	85		SA-A250H-1500L	1625	680	132.5	130
SA-A300H-1000L	1150	870	140	120		SA-A300H-1500L	1650	685	140	175
SA-A400H-1000L	1200	900	150	208		SA-A400H-1500L	1700	700	150	300
SA-A500H-1000L	1250	930	160	325		SA-A500H-1500L	1750	715	160	460
SA-A600H-1000L	1300	960	170	480		SA-A600H-1500L	1800	730	170	680
SA-A800H-1000L	1400	1040	180	875		SA-A800H-1500L	1900	770	180	1220
SA-A1000H-1000L	1500	1100	200	1395		SA-A1000H-1500L	2000	800	200	1920

2000L						2500L
Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）		Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）
SA-A200H-2000L		620	120	122		SA-A200H-2500L	2600	785	122.5	151
SA-A250H-2000L	2125	620	132.5	170		SA-A250H-2500L	2625	790	127.5	225
SA-A300H-2000L	2150	625	137.5	230		SA-A300H-2500L	2650	790	140	315
SA-A400H-2000L	2200	635	147.5	390		SA-A400H-2500L	2700	800	150	535
SA-A500H-2000L	2250	645	157.5	605		SA-A500H-2500L	2750	810	160	810
SA-A600H-2000L	2300	655	167.5	880		SA-A600H-2500L	2800	820	170	1113
SA-A800H-2000L	2400	680	180	1570		SA-A800H-2500L	2900	845	182.5	2045
SA-A1000H-2000L	2500	700	200	2450		SA-A1000H-2500L	3000	865	202.5	3200

3000L						3500L
Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）		Model	L1a(mm)	L2a (mm)	L3a (mm)	weight(kg）
SA-A200H-3000L	3100	715	120	180		SA-A200H-3500L	3600	672	120	210
SA-A250H-3000L	3125	715	132.5	270		SA-A250H-3500L	3625	673	130	310
SA-A300H-3000L	3150	715	145	375		SA-A300H-3500L	3650	674	140	435
SA-A400H-3000L	3200	725	150	638		SA-A400H-3500L	3700	680	150	740
SA-A500H-3000L	3250	730	165	963		SA-A500H-3500L	3750	686	160	1150
SA-A600H-3000L	3300	740	170	1380		SA-A600H-3500L	3800	692	170	1595
SA-A800H-3000L	3400	760	180	2420		SA-A800H-3500L	3900	708	180	4600
SA-A1000H-3000L	3500	775	200	4610		SA-A1000H-3500L	4000	720	200	6400

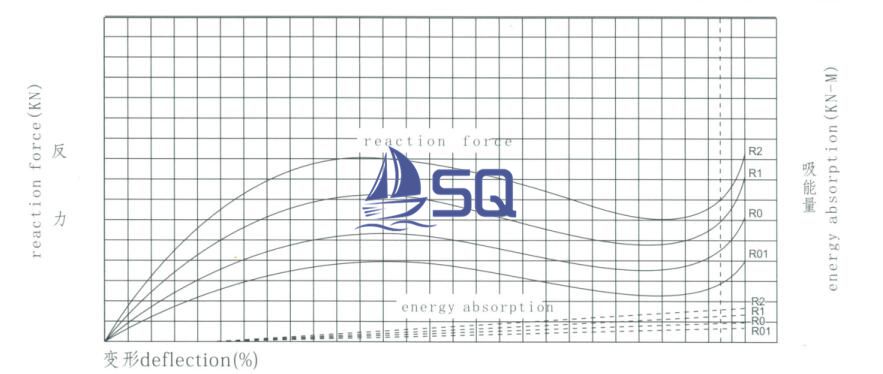

PERFORMANCE LIST

Grade	R2 Super Reacion Force				R1 High Reacion Force				R0 Standard Reacion Force				R01 Low Reacion Force
Deflection	52.50%		55%		52.50%		55%		52.50%		55%		52.50%		55%
	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)	R(KN)	E(KN-M)
SA-A200H-1000L	170	11	231	15	149	11	199	10	110	9	149	8	74	5	99	6
SA-A200H-1500L	254	17	344	20	225	14	298	17	168	11	224	12	112	7	149	9
SA-A200H-2000L	341	20	452	28	300	20	400	25	220	17	229	17	148	9	200	11
SA-A200H-2500L	424	25	575	35	375	24	499	29	275	20	376	20	187	11	248	14
SA-A200H-3000L	511	30	650	41	450	28	600	34	330	24	451	26	224	14	300	18
SA-A200H-3500L	580	35	800	50	524	35	700	41	384	26	525	28	261	16	348	20
SA-A250H-1000L	211	16	278	20	180	17	249	18	138	12	190	15	963	8	118	9
SA-A250H-1500L	315	25	420	31	274	24	376	25	211	19	286	21	141	12	178	13
SA-A250H-2000L	422	32	561	39	361	32	500	37	284	23	380	28	187	15	241	17
SA-A250H-2500L	520	40	700	50	450	39	621	46	351	30	475	36	236	20	300	20
SA-A250H-3000L	625	49	839	58	540	48	748	53	421	36	570	41	281	24	361	24
SA-A250H-3500L	735	57	981	69	631	58	874	65	498	41	666	48	328	28	416	28
SA-A300H-1000L	324	41	450	44	249	31	346	33	206	26	286	28	177	22	246	24
SA-A300H-1500L	486	62	675	66	374	47	519	50	309	39	429	42	266	33	369	36
SA-A300H-2000L	684	82	900	88	498	62	692	66	412	52	572	56	354	44	492	48
SA-A300H-2500L	810	103	1125	110	623	78	865	83	515	65	715	70	443	55	615	60
SA-A300H-3000L	972	123	1350	132	747	93	1038	99	618’	78	855	84	531	66	738	72
SA-A300H-3500L	1134	144	1575	154	872	109	1211	116	721	91	1000	98	620	77	860	84
SA-A400H-1000L	432	70	600	79	332	56	462	61	276	45	383	48	235	40	328	43
SA-A400H-1500L	649	109	900	116	499	83	693	89	413	68	573	73	355	61	493	66
SA-A400H-2000L	865	145	1200	155	665	110	923	119	550	93	765	99	472	80	655	87
SA-A400H-2500L	1082	182	1501	195	831	138	1152	148	687	116	956	120	589	99	820	107
SA-A400H-3000L	1299	218	1802	233	996	170	1382	178	825	138	1145	145	709	120	984	128
SA-A400H-3500L	1512	256	2100	273	1160	195	1612	211	962	161	1337	172	817	140	1149	150
SA-A500H-1000L	540	110	751	117	414	85	575	92	345	72	478	77	292	62	411	66
SA-A500H-1500L	810	171	1123	180	622	130	860	140	515	108	717	116	444	92	614	98
SA-A500H-2000L	1082	225	1500	242	831	175	1150	186	688	145	956	154	591	125	820	133
SA-A500H-2500L	1345	283	1874	300	1036	215	1442	231	834	180	1192	193	738	156	1025	164
SA-A500H-3000L	1610	338	2250	353	1240	252	1726	270	1032	216	1434	231	865	185	1232	202
SA-A500H-3500L	1880	398	2625	424	1453	306	2014	326	1204	252	1672	270	1032	217	1432	230
SA-A600H-1000L	646	162	890	170	478	125	692	131	412	104	572	111	350	90	492	96
SA-A600H-1500L	970	243	1348	260	747	187	1032	199	618	156	858	167	526	138	736	150
SA-A600H-2000L	1280	325	1780	340	999	245	1378	265	824	208	1144	222	702	180	981	197
SA-A600H-2500L	1618	408	2214	438	1245	315	1725	339	1030	260	1430	278	889	222	1225	239
SA-A600H-3000L	1940	488	2690	525	1490	377	2077	406	1236	312	1716	333	1062	267	1467	286
SA-A600H-3500L	2265	571	3101	613	1742	442	2421	470	1442	364	2002	389	1239	311	1721	332
SA-A800H-1000L	864	290	1200	310	662	222	921	240	550	185	764	198	471	159	655	171
SA-A800H-1500L	1290	430	1800	466	996	335	1382	360	825	278	1146	297	707	238	982	252
SA-A800H-2000L	1720	578	2400	622	1328	444	1840	470	1100	370	1528	396	942	317	1311	339
SA-A800H-2500L	2158	725	3000	777	1661	550	2300	590	1375	463	1910	495	1180	397	1642	418
SA-A800H-3000L	2590	869	3600	930	1990	667	2700	714	1650	555	2292	594	1410	476	1966	511
SA-A800H-3500L	2800	970	3800	1060	2130	745	2900	910	1921	660	2620	710	1600	562	2210	620
SA-A1000H-1000L	1080	453	1500	487	831	349	1152	370	688	289	956	310	590	247	818	262
SA-A1000H-1500L	1680	680	2245	726	1243	522	1723	560	1032	434	1434	466	883	371	1225	389
SA-A1000H-2000L	2158	907	3000	970	1664	698	2300	746	1376	578	1912	620	1178	493	1630	530

Perormance Tolerance ±10%
