Single-deck masthead light

Model / name

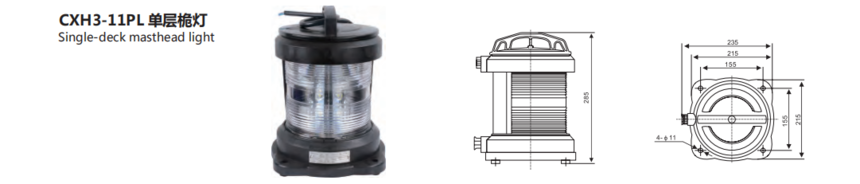

Cxh3-11pl Single-deck masthead light
Visible distance:6n.m
Horizontal arc:225°
Protection level:IP56
Cable outer diameter:Φ10~Φ12
colour:white
weight:2.9kg
power:8W
Rated voltage:AC100-240V 50/60Hz, DC24V
light source:LED

Scope of application
It is suitable for all kinds of ships of 50m or above for night navigation light signal communication.

Product features
1. The shell is made of high strength engineering plastic PA + GF, the light cover is made of PC injection molding, and the light shield is made of
Adopt high quality stainless steel molding;
2. The lamp has an integral sealing structure, which is waterproof when used in harsh environment;
3. The special LED light source conforming to the ship's specifications is selected for the signal lamp, which is more energy-saving and has longer service life;
4. The lamp can work normally in the range of - 30 ℃ - 55 ℃.

Standards adopted

GB / T 3028, resolution msc253 (8), international regulations for preventing collisions at sea 1972 and rules for classification of steel sea going vessels (CCS).
