six strand rope

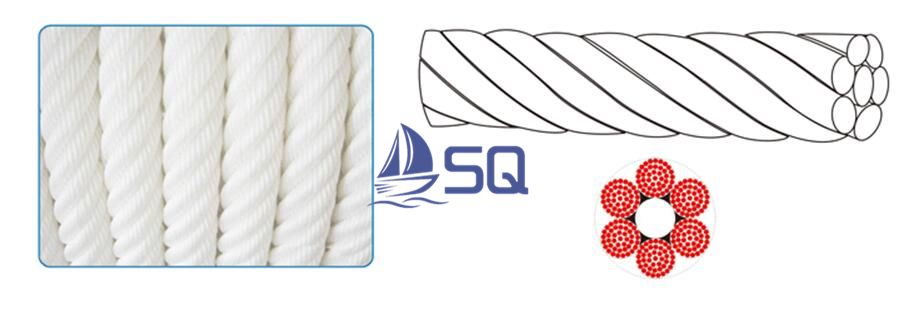

NINE STRENGTH ATLAS lines are six-strand ropes. It is combined by nylon Mono- and multi-filaments.The mono-filament gives the ropes excellent dimensional stability and abrasion resistance. The splicing technique of  Atlas is very similar to wire rope. The stretch of the nylon in combination and the dimensional stability makes these lines ideal for mooring, especially for a constant-tension winch.

six strand rope

Main performance

◎ Material: 100% nylon 6 (mono-and multi-filament)

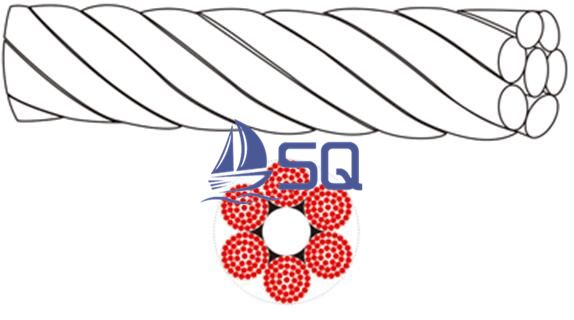

◎ Construction: 6 strand crosslay
◎ Colour of Rope: White with a red marker yarn.
◎ Approx. Spec. Density 1.14 non floating
◎ Melting Point: 215℃
◎ Abrasion Resistance: Excellent
◎ U.V.resistance: Excellent
◎ Temperature resistance: 80℃ max continuous
◎ Chemical resistance: Reasonable, acids, oxidizer &
solvents will affect the material
◎ Dry & wet conditions: Can be stowed wet
◎ Range of use: As winch lines, mooring lines,anchor
lines and heavy duty Applications
◎ Coil length: 220m
◎ Spliced strength:±10%
◎ Weight and length tolerance:±5%
◎ MBL = Minimum Breaking Load conform ISO 2307
◎ Other sizes available upon request

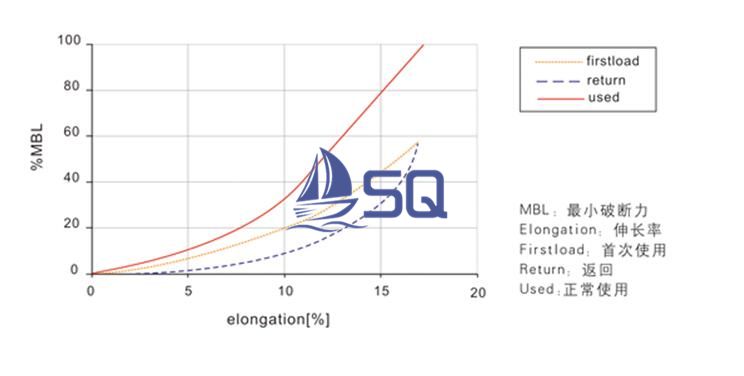

Technology Comparison

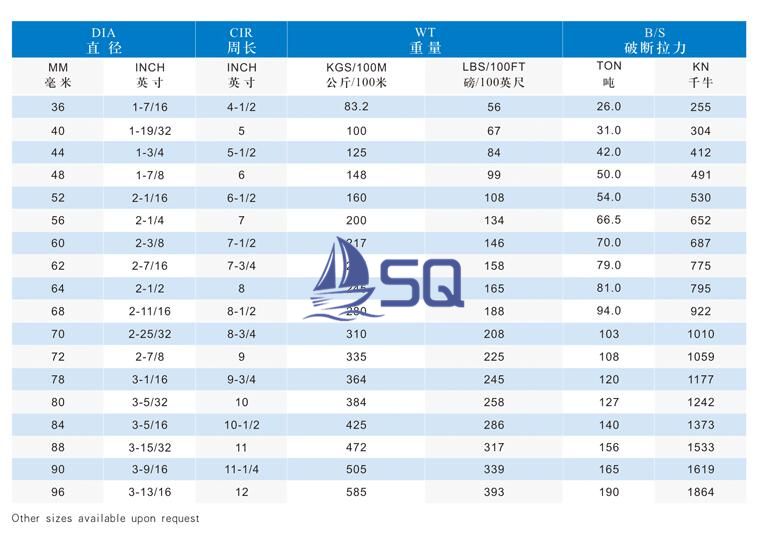

Parameter Table
