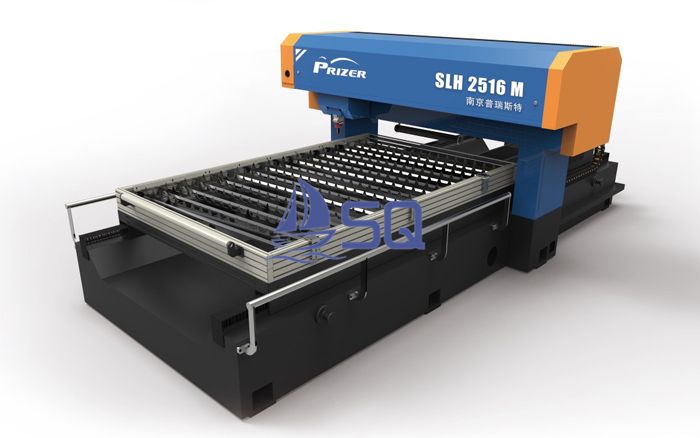

SLH2516 Die-board Laser Cutting Machine for Photoelectric Industry

Category:Industrial Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China SLH2516 Die-board Laser Cutting Machine for Photoelectric Industry Introduction:

Specifications

Brand Name

HS Code

Unit

Customed Made

MOQ

Delivery Period

Description

1、Advantages
Our machines are equipped with advanced third-generation CO2 laser, which have the features of energy saving, low cost and stable optical path. Its mobile gantry structure, can guarantee long-term stability and security; its mobile exchange tables, can allow operators to load and unload work pieces while laser processing, that is convenient and saving time ;its servo system and CNC control system are all original imported, with good compatibility, strong stability, easy maintenance, and excellent processing capability.

•Adopt gantry structure, ball screw drive and hybrid optic path, to achieve good rigidity, excellent dynamic performance and high positioning accuracy.
•With aluminum alloy work table, high-vacuumed fixed position dust removal and automatic lubrication.
•Adopt Germany imported special PA laser CNC system to ensure easy use and stability.
•With professional laser cutting parameters, and automatic control of the auxiliary gas ratio.
•With independent-developed laser intelligent system, laser generator and laser cutting machine are combined into one for remote diagnosis and quick troubleshooting.
•Be equipped with professional laser cutting process parameters, that is able to automatically shift to any kerfs in eight directions, which is synchronized with international advanced level
•Be equipped with metal cutting device that is able to cut metal sheet in fine quality.

2、Industry
Sheet metal processing, die-board processing, electronics, electrical appliances ,aviation, aerospace, machinery manufacturing , lift manufacturing ,automobile manufacturing, ship manufacturing, electrical appliances manufacturing, tool processing, subway accessories, petroleum machinery manufacturing, food machinery, craft gifts, tool processing, decoration, advertising, metal external processing and other manufacturing and processing industries.

3、Materials
Mainly used for rapid cutting of various metal materials such as Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized plate, pickling plate, galvanized steel plate, copper, etc; high cutting quality for 0.5~18mm thickness of Mild steel, 0.5 ~6mm thickness of stainless steel and below 22mm thickness of die-board. Also used for cutting PVC, density board, Acrylic, ABS, wood and other non-metallic materials.

4、Processing Capacity

Material/Max thickness/Power	2000W	3200W	4200W
Mild Steel	12mm	16mm	20mm
stainless steel	6mm	8mm	10mm

5、Specification

Item	Specifications	Unit	SLH2515M Technical Data	SLH2512M Technical Data
1	Working area(L×W)	mm	2550×1650	2550×1250
2	X Axis Travel	mm	1650	1250
3	Y Axis Travel	mm	2550	2550
4	Z Axis Travel	mm	120
5	Position Accuracy(X axis, Y axis)	mm	≤±0.03
6	Repeatability Accuracy(X axis, Y axis)	mm	≤±0.01
7	Max Positioning speed(X axis, Y axis)	m/min	20
8	Min programmable unit	mm	0.001
9	Simultaneous Controlled Axes		X、Y、Z
10	Equipment Weight	kg	3000
11	CNC Controller		PA8000,Germany imported
12	Max loading weight	kg	200
13	Power Supply		AC 3P 380V±2% 50Hz
14	Ingress Protection Grade of Power Supply		IP54

6、Processed Sample
