Super Cell Rubber Fender

Get a factory quote now, we can supply according to your requirement.

China Super Cell Rubber Fender Introduction:

Specifications

    Brand Name
  • OEM
    HS Code
  • 4017002000
    Unit
  • PCE(Pieces)
    Customed Made
  • Yes
    MOQ
  • 1
    Delivery Period
  • 60 days

Description

Feature

1.More reasonble structure.

2.High E/R.H value.

3.Verg suitable for the large wharf.

Specification

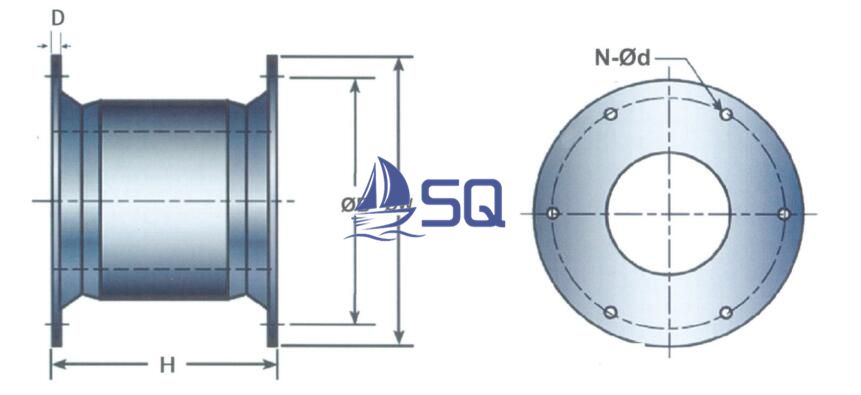

SPECILIZATION H (mm) W (mm) B (mm) D (mm) n x d (mm) Weight (kg)
SC400H 400 650 550 25 4x30 78
SC500H 500 650 550 25 4x32 110
SC630H 630 840 700 25 4x39 230
SC800H 800 1050 900 30 6x40 410
SC1000H 1000 1300 1100 35 6x47 790
SC1150H 1150 1500 1300 37 6x50 1200
SC1250H 1250 1650 1450 40 6x53 1500
SC1450H 1450 1850 1650 42 6x61 2300
SC1600H 1600 2000 1800 46 8x61 3000
SC1700H 1700 2100 1900 50 8x66 3600
SC2000H 2000 2200 2000 50 8x74 4200
SC2250H 2250 2550 2300 57 10x74 7400
SC2500H 2500 2950 2700 70 10x74 10500
SC3000H 3000 3350 3150 75 12x90 18500

MAIN ACCESSORIES AND APPLICATIONS

NO. Description Applications Material
1 U-ring holding chains Q235 Painted or hot-galv
2 bolt&nut fasten fenders on to dock. Stainless steel or hot-galv
3 Face pad Reducing the friction coeffient and protecting the ship shull Rubber
4 Front panel Protecting the hull of vessel Q235 Painted
5 Weight chainl Support of frontal frame. Q235 Painted
6 shear chainl Restraining stretching of the fender system Q235 Painted
7 Tension chainl Restraining stretching of the fender at partial compression Q235 Painted
8 Connector Connect the fender & front pabel and face pad. Stainless steel or hot-galv

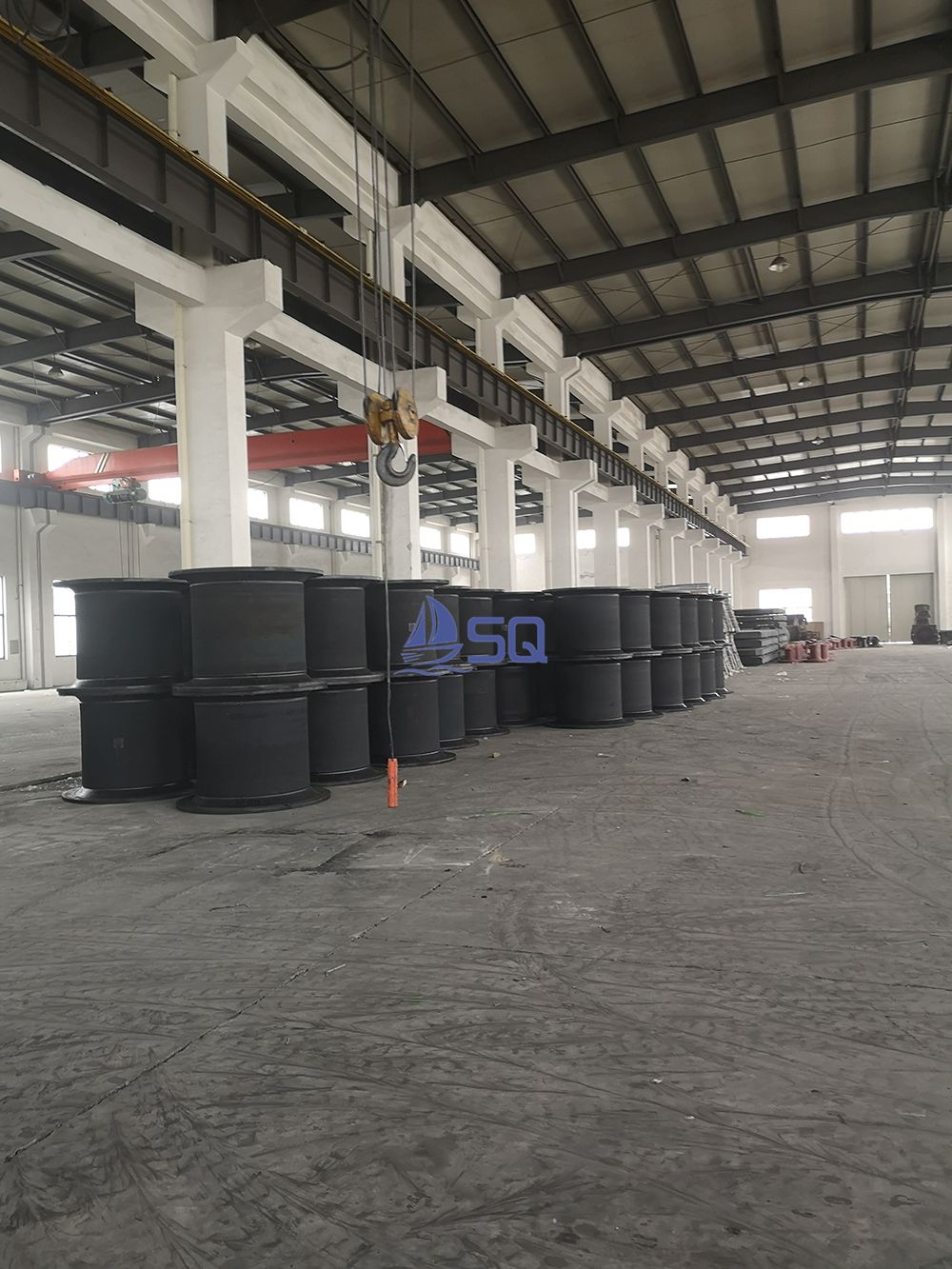

Workshop





Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
