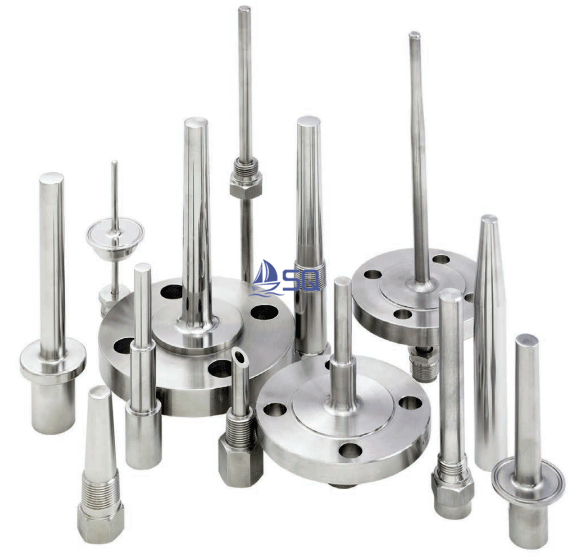

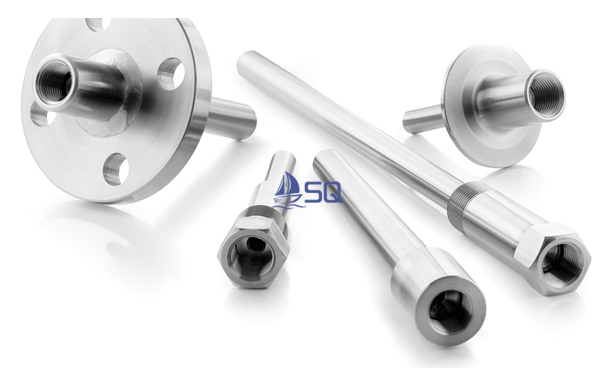

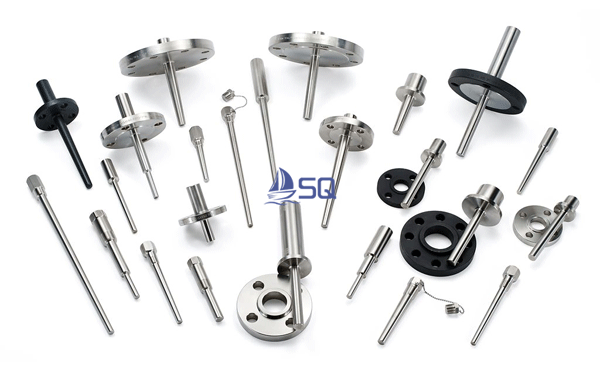

THERMOWELL is a temperature sensor installation component that is installed outside the temperature measuring element or pre installed on the equipment to resist the pressure and corrosion of the measured medium. It is commonly known as a thermometer sleeve. THERMOWELL is mostly used with armored thermocouples, armored thermal resistors, and bimetallic thermometers.
Working pressure: Welded thermowell THERMOWELL: -0.1~10MPa; Thermowell with integral drilling type: -0.1~30MPa; Thermowell THERMOWELL should be used as the working pressure after a reasonable derating of the nominal pressure, depending on the type of material selected and the temperature of use.
Water pressure test: The pressure level of THERMOWELL test is 1.5 times the pressure resistance level of the protective tube.
Medium flow rate: THERMOWELL, a hot installation sleeve, is used in media with a flow rate not exceeding 80m/s.
Welcome to consult China THERMOWELL suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
