Transmission output with DC indicator

Transmission output with DC indicator

Characteristics;

Measurement of DC signal and transmission output.

Scale of front panel can in temperature,pressure and other type sensors(as per customer requirements)

Accuracy:Class 1.5

Accuracy of output :Class 0.5

Output rangge:DC10mA,20 mA,4~20 mA,load≤450Ω,DC5V,10V,1-5V,load≥5kΩ

Ambient temperrature range:-25℃ to +55℃

Housing protection: IP44(Up to IP56 with protection shield, Specify IP degree in order)

Vibration resistance:2-1ooHz,≤0.7g

Test voltage: AC2.5kV, 50Hz, 1min

Power:24Vdc±25%， 100Vac， 220Vac±20%

Power comsumption：≤2VA

Kind of products

Type	Develop angle	Outline(mm)	Cut-out	Weight(kg )

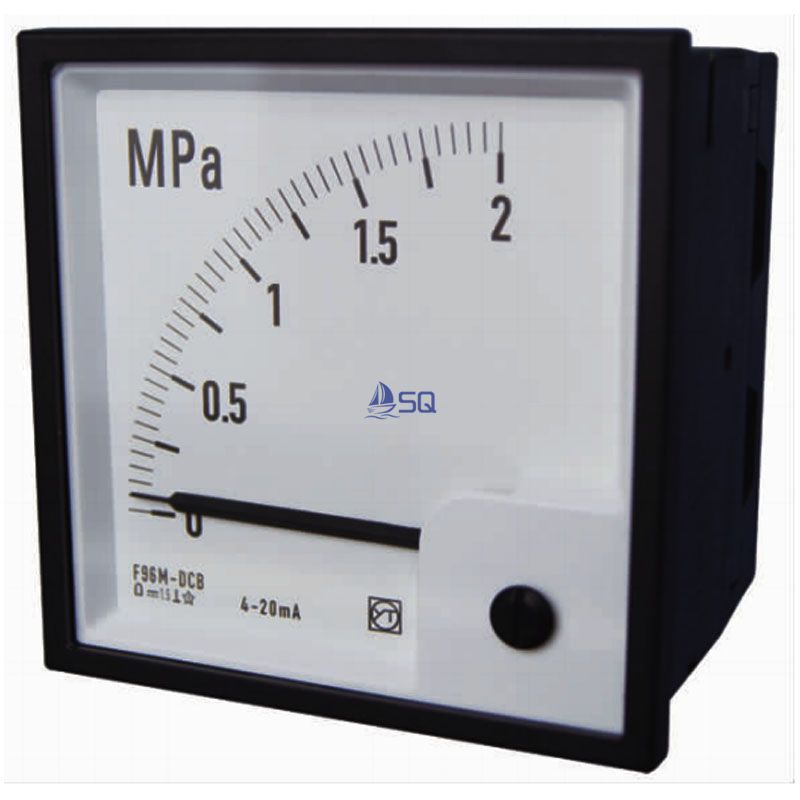

F72M-DCB	90°	72*72*120	68*68+0.5	0.15
F96M-DCB	96*96*130	92*92+0.5	0.3
F144M-DCB	144*144*133	138*138+0.5	0.6
F72M-DC	240°	72*72*120	68*68+0.5	0.45
F96M-DC	96*96*130	92*92+0.5	0.5
F144M-DC	144*144*130	138*138+0.5	0.6

Directions;

1,This instument is used for temperaure and pressure indication by means of 4-20mA or the oyher DC signal analog input, and is provided with transmission on output.

2,Rear panel is installed with 2 regulation,the upper one is for upper limit adjuested and lower one is for lower limit adjusted, the default settiing is based on customer's demand and could be adjusted by customer if requirement.

3, Specify"J" for special meter as :F96JM-DC
