Sensor input:PT100,K thrmocouple.
Accuracy of indication :Class 1.5
Accuracy of output :Class 0.5
Output rangge:DC 4~20 mA,load≤450Ω
Ambient temperrature range:-25℃ to +55℃
Housing protection: IP44(Up to IP56 with protection shield, Specify IP degree in order)
Vibration resistance:2-1ooHz,≤0.7g
Test voltage: AC2.5kV, 50Hz, 1min
Power:24Vdc±25%， 100Vac， 220Vac±20%
Power comsumption：≤2VA

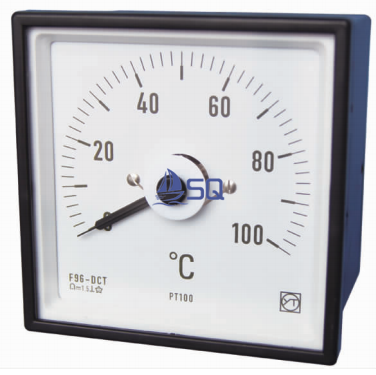

Measuring range as F96-DCT
|
Type |
Develop angle |
Outline(mm) |
Cut-out |
Weight |
|
F72-DCTB |
90° |
72*72*120 |
68*68+0.5 |
0.3 |
|
F96-DCTB |
96*96*130 |
92*92+0.5 |
0.4 |
|
|
F144-DCTB |
144*144*130 |
138*138+0.5 |
0.45 |
|
|
F72B-DCT |
240° |
72*72*120 |
68*68+0.5 |
0.5 |
|
F96B-DCT |
96*96*130 |
92*92+0.5 |
0.5 |
|
|
F144 B-DTC |
144*144*130 |
138*138+0.5 |
0.6 |
