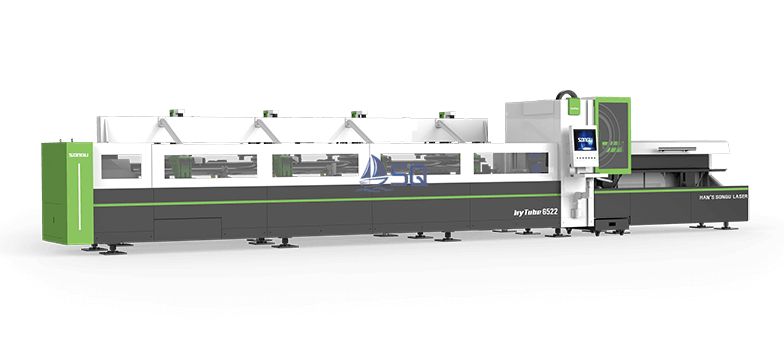

Tube Fiber Laser Cutting Machine
Linear positioning speed is 100m/min, rotation positioning speed is 120m/min.
FRIENDESS FSCUT3000S numerical control system based on Windows system, special platform of laser tube cutter, integrated with special function module of laser cutting control, powerful function, friendly interface, simple operation；
Professional tube cutting software to achieve "Full time cutting, Efficient cutting"; effective material saving and improve cutting efficiency；
Capacitive laser cutting head, high induction accuracy, responsive, stable and reliable performance；
Unique support device, during the tube feeding and rotating, the support device always keeps contacting with the surface of the tube, support force according to the tube type to ensure effective support, prevent the tube dropping, reduce the axis swing when the tube rotating, and improve the processing accuracy；
Automatic bundle feeding function (optional) to reduce the number of operators and improve the processing efficiency；
Automatic identification system of tube section (optional) for the mixed tubes feeding, automatic identifying the tube type, automatic access to the process library, prompt alternative processing procedures；
Complete cutting process parameter library, user-friendly parameter interface, according to the tube type to achieve the "one-key setting" processing technology, also real-time modification of laser cutting parameter in the interface；
High precision servo proportional valve, precise control of cutting auxiliary gas pressure and chuck clamping force to achieve the best cutting effect；
The linear positioning speed can reach 100m/min, and the rotary positioning speed can reach 120m/min.
|
Model |
HyTube9532C |
| Working area |
9500*Φ20-320mm |
| Number of chucks | 3 |
| Automatic max. feeding length | 9000mm |
| Max. manual feeding length | 11000mm |
| Max. acceleration | 1.5G |
| Positioning accuracy | ±0.05mm/m |
| Repeat positioning accuracy | ±0.03mm/m |
| Front / middle / rear chuck jaw travel | 52.5mm/70mm/52.5mm |
| Max. linkage speed | 100m/min |
| Whole bundle feeding length | 4000-9000mm |
| Max. blanking length | 0-6000mm |
| Equipment weight | 13500kg |
| Max. load of chuck | 400kg |
| Equipment size | 22250*3550*2600mm |
| Min. pipe wall thickness for chuck clamping | ≥1mm |
| Min. surplus length | 0mm |
