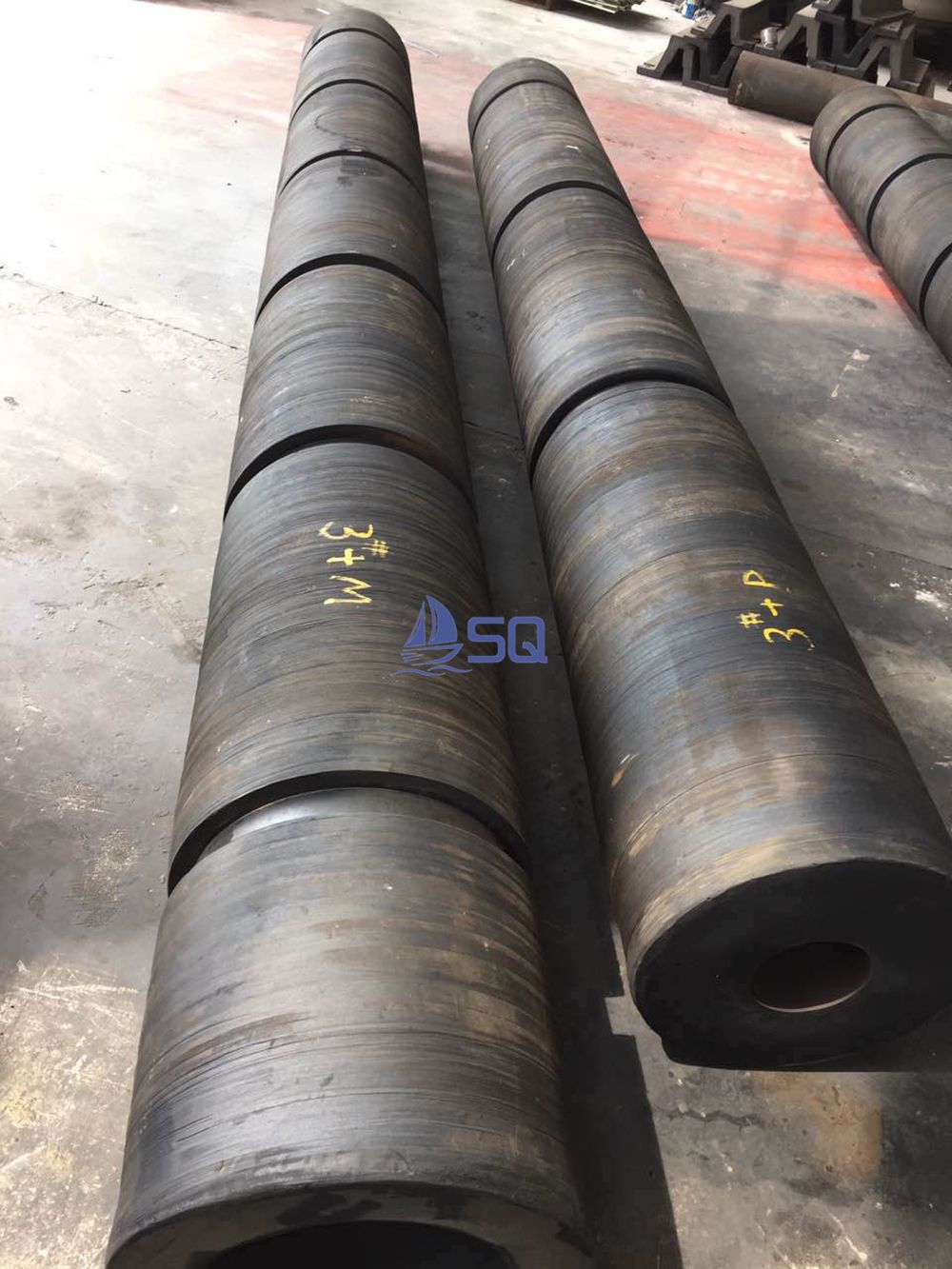

Tug Type Rubber Fender

Feature

1.Applicable in tug boats in all kinds of ports.

2.Tugboat rubber fender is mainly used for port tugboat. It is installed in wharf, ship side and stern.

3.It is engaged in top, push, lean and tow operations.

4.The fender is manufactured as a whole.

5.It has the characteristics of good overall performance, high quality and easy installation.

Specification

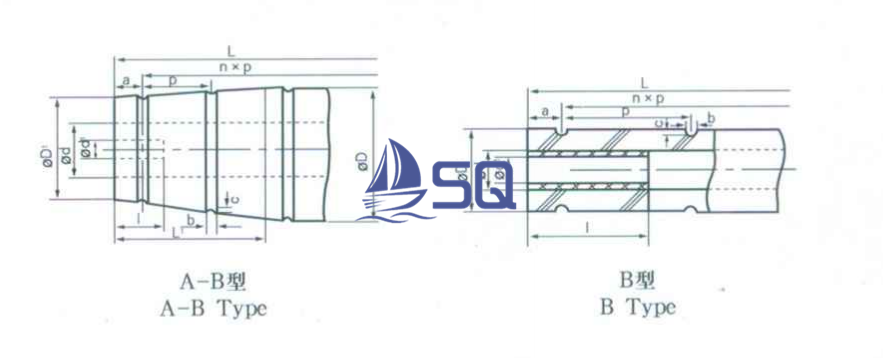

A-B Type series norms and size               UNIT∶mm

Norms and Size	a	P	n	b	c	φD	φD1	φd	φd1	L	I	I1
φ500 x φ400 x φ250 x φ100 x φ16000	500	1000	15	60	40	500	400	250	100	16000	450	1000
φ700 x φ600 x φ350 x φ100 x φ14000	370	780	17	60	40	700	600	350	100	14000	450	1000

B Type series norms and size               UNIT∶mm

Norms and size	b	c	φD	φd	φd1	I
φ300 x φ150 x L	50	25	300	150
φ300 x φ100 x L	50	25	300	100
φ400 x φ200 x L	50	35	400	200		300
φ400 x φ150 x L	50	35	400	150	100
φ400 x φ100 x L	50	35	400	100
φ500 x φ250 x L	60	40	500	250		350
φ500 x φ220 x L	60	40	500	220	100	350
φ500 x φ200 x L	60	40	500	200	100	350
φ500 x φ150 x L	60	40	500	150	100
φ500 x φ100 x L	60	40	500	100
φ600 x φ300 x L	60	35	600	300		400
φ600 x φ250 x L	60	50	600	250	100	400
φ600 x φ220 x L	60	50	600	220	100	400
φ600 x φ200 x L	60	50	600	200	100	400
φ600 x φ150 x L	60	50	600	150	100
φ600 x φ100 x L	60	50	600	100
φ700 x φ350 x L	60	50	700	350		450
φ700 x φ300 x L	60	50	700	300	100	400
φ700 x φ250 x L	60	50	700	250	100	400
φ700 x φ220 x L	60	50	700	220	100	400
φ700 x φ200 x L	60	50	700	200	100	400
φ700 x φ150 x L	60	50	700	150	100
φ800 x φ400 x L	70	50	800	400		450
φ800 x φ350 x L	70	60	800	350	100	450
φ800 x φ300 x L	70	60	800	300	100	450
φ800 x φ250 x L	70	60	800	250	100	450
φ800 x φ220 x L	70	60	800	220	100	400
φ800 x φ200 x L	70	60	800	200	100	400
φ800 x φ150 x L	70	60	800	150	100
φ900 x φ450 x L	70	50	900	450		500
φ900 x φ400xL	70	50	900	400	100	500
φ900 x φ350 x L	70	50	900	350	100	500
φ900 x φ220 x L	70	50	900	220	100

Notice∶a,p x n-Lcan be produced according to consumer's demands/opinions a=100~600mm p=350~1200mmL=3000~26000mm，n generally means odd number，also can use even number.

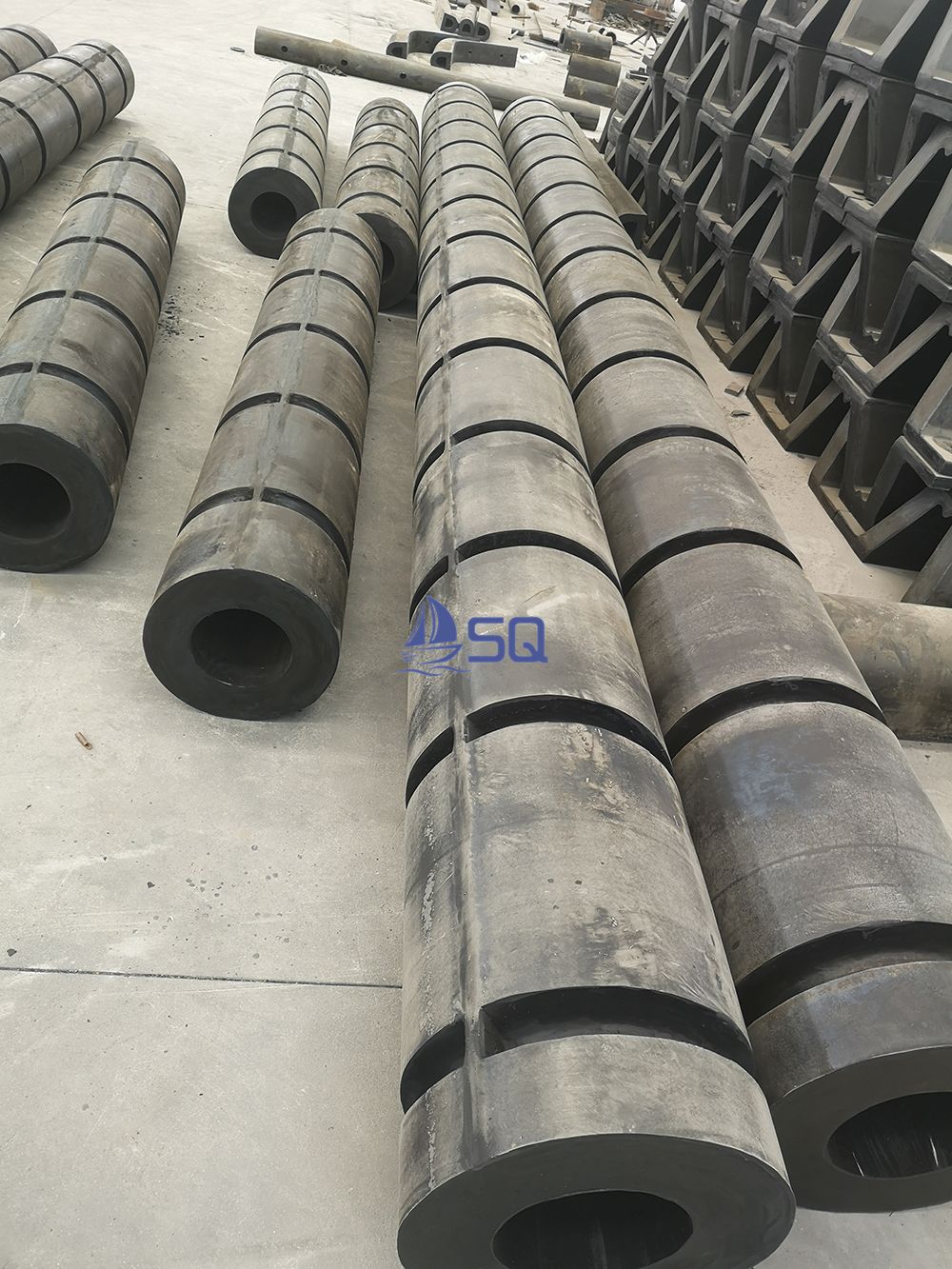

Workshop

Quality Guarantee:

Product Range: All marine outfittings, equipment, and facilities, etc.
Product Design: With a strong engineer team, for all marine products, we support design, manufacture, installation, etc, according to your requirements. All products strictly conform to your confirmation.
Product Process: Most of the products are finished on our own manufacture bases, thus quality and delivery time could safely guarantee and also avoid indirect troubles.
Product Inspection: Double inspection make sure quality guaranteed completely.
