Two-stage Horizontal Cycloid Pinwheel Planetary Reducer

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China Two-stage Horizontal Cycloid Pinwheel Planetary Reducer Introduction:

Specifications

Brand Name

Shanqing

HS Code

Unit

Customed Made

MOQ

Delivery Period

5 days

Description

Two-stage Horizontal Cycloid Pinwheel Planetary Reducer

The key to Cycloidial Drive matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to helical gear and planetary gear designs that use only limited tooth contact. Unlike geared designs, the SPEED's reduction components operate in compression rather than shear, which results to withstand shock loads exceeding ratings of 500%, provide exceptional performance, reliability and long life in most severe applications

Parameters Table

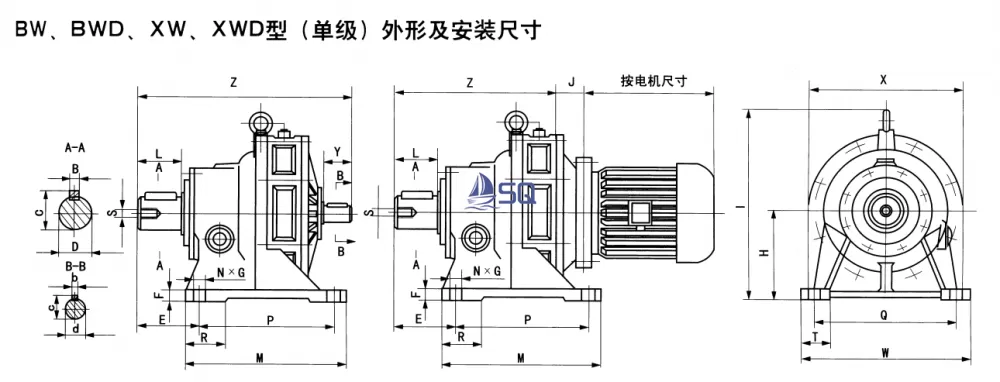

BW、BWD、XW、XWD type(Two stage) shape and installation dimensions

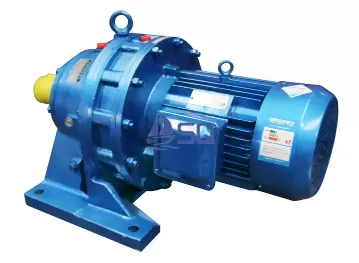

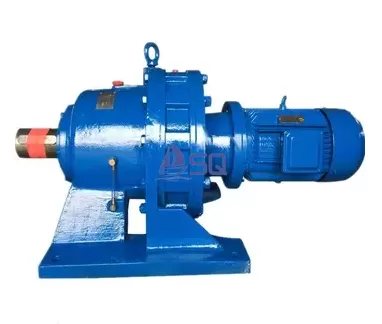

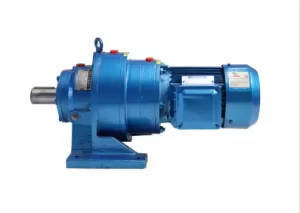

Appearance of a two-stage horizontal cycloid pinwheel planetary reducer

NO.

Dimensions

Installation size

Shaft end size

weightht

BWE

BWED （≈）

BWE

BWED

BWE、 BWED120-195No.

B120	200	320	368	319	306	240	140	144	20	150	280		M8	60	4	13	14	48. 5	45	68	5	17	15	22	50	BWED weight + motor weight
130	250	390	417	368	356	300	160	159	25	200	340		M12	75	4	17	16	59	55	80	5	17	15	22	82
131	250	390	443	373	356	300	160	159	25	200	340	65	M12	75	4	17	16	59	55	80	6	20. 5	18	35	90
141	380	400	505	435	425	340	200	153	25	320	340	65	M12	80	4	22	20	74. 5	70	100	6	20. 5	18	35	140
142	380	400	534	459	425	340	200	153	25	320	340	100	M12	80	4	22	20	74. 5	70	100	6	24. 5	22	40	155
152	440	470	635	535	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	6	24. 5	22	40	240
153	440	470	643	547	504	400	240	155	32	380	420		M16	80	4	22	25	95	90	116	8	33	30	55	260
163	520	560	741	645	605	500	280	199	35	440	500		M20	90	4	26	28	106	100	139	8	33	30	55	460
174	600	690	863	754	706	616	325	230	40	500	630		M24	105	6	26	28	116	110	150	10	38	35	62	680
185	810	880	1113	983	880	760	420	324	50	660	800		M30	160	6	32	32	137	130	202	14	48. 5	45	70	1320
195	1040	1160	1502	1350	1160	1000	540	485	60	840	1050		M42	200	6	45	45	190	180	330	14	48. 5	45	70

XWE、XWED42—128No.

X42	195	330	372	319	316	240	150	169	22	145	290	M8	65	4	16	14	48. 5	45	72	5	17	15	22	50	XBWED weight + motor weight
53	260	420	479	409	356	300	160	206	25	150	370	M12	75	4	16	16	59	55	91	6	20. 5	18	35	110
63	335	430	524	454	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	20. 5	18	35	150
64	335	430	552	478	425	340	200	125	30	275	380	M12	75	4	22	18	69	65	89	6	24. 5	22	40	160
74	380	470	582	508	484	400	220	145	30	320	420	M16	95	4	22	22	85	80	109	6	24. 5	22	40	230
84	440	530	648	574	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	6	24.5	22	40	260
85	440	530	682	586	514	400	250	155	35	380	480	M16	120	4	22	25	95	90	120	8	33	30	55	290
95	560	620	784	688	614	500	290	186	40	480	560	M20	120	4	26	28	106	100	141	8	33	30	55	470
106	600	690	863	754	706	616	325	230	40	500	630	M24	105	6	26	28	116	110	150	10	38	35	62	680
117	810	880	1108	983	880	760	420	324	50	660	800	M30	160	6	32	32	137	130	202	12	43	40	65	1320
128	1040	1160	1502	1350	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	14	48.5	45	70

Product details

Wide Capacity Range

Choose the size and modifications that best fit your needs. A wide range of HP ratings up to 200HP, reduction ratios up to 658,503:1, and dozens of application and industry specific modifications, ensure your operation avoids unexpected downtime.

Running smoothly

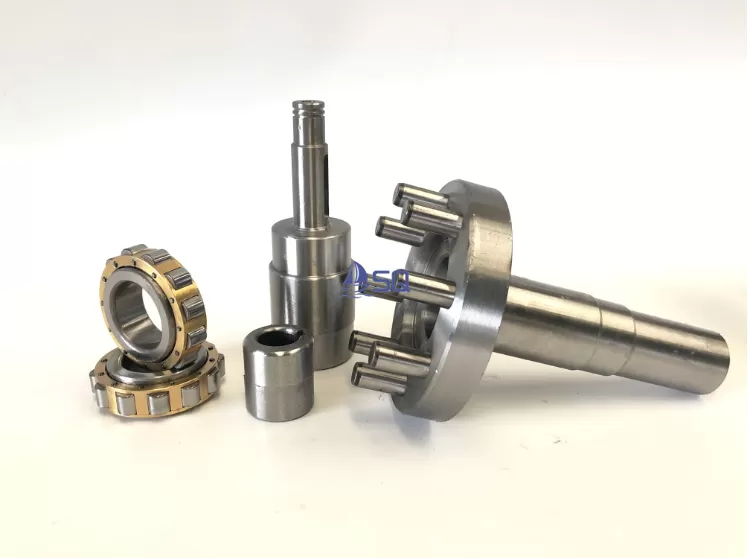

The cycloidal reducer design allows the reduction components to operate in a smooth, rolling manner, preventing tooth breakage typical in conventional gearing, and resulting in a durable product with a long life.

High Efficiency

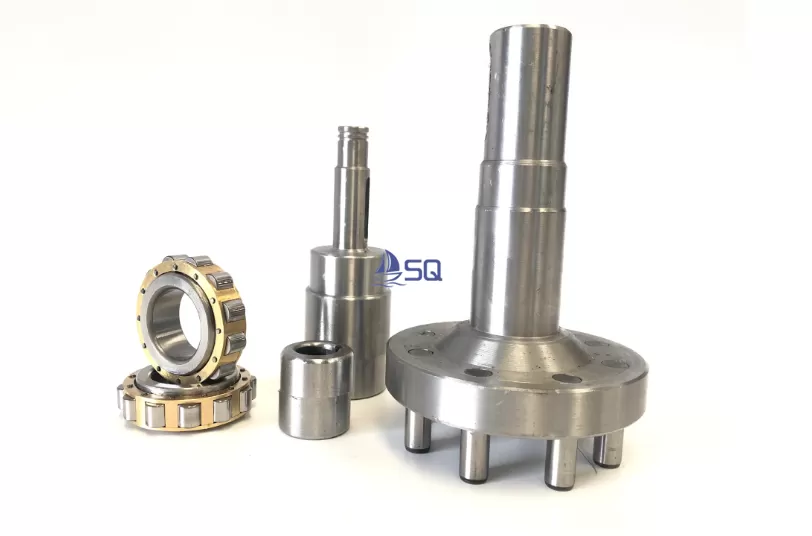

Rolling Contact - All major torque transmitting components roll; they do not slide. Rolling motion contributes to minimal friction and high efficiency. Single stage efficiency approaches 93%, and double stage efficiency approaches 86%

Durable and Long Service Life

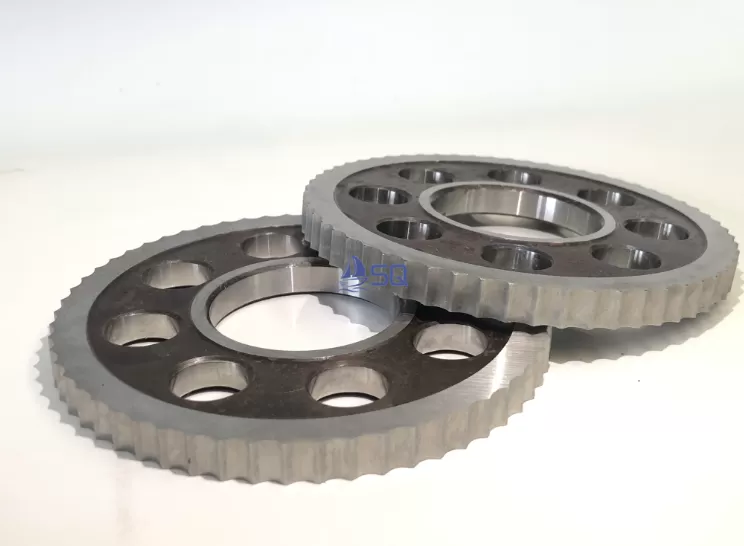

The gear tooth profile of Cycloid Drive enables the sharing of the load by a number of teeth, thus not susceptible to tooth breakage. At least 66% of ring gear rollers and cycloidial disc lobes share the shock load under compression. In addition, major torque transmission Components inside ，Cycloid Drive are made of high carbon chromium bearing grade steel hardened to Rockwell Hardness of HRC 61~63 and with precision grinding. The end result is that Varitron Cycloid Drive are capable of withstanding intermittent shock load up to 500% of its catalog torque rating.

Service

Welcome to consult China Two-stage Horizontal Cycloid Pinwheel Planetary Reducer suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
