Two-stage vertical reducer Cycloid Reducer


The Cycloid components operate in compression, not in shear. Unlike gear teeth with limited contact points, a Cycloid has two-thirds of its reduction components in contact at all times. This design enables Cycloid speed reducers and gearmotors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.


Efficient, Compact

The Inline-vertical Cycloid Reducer design makes it a highly efficient, compact, torque transmitting reducer..

Parameters Table

BL, BLD, XL, XLD type (single stage) outline and installation dimensions.

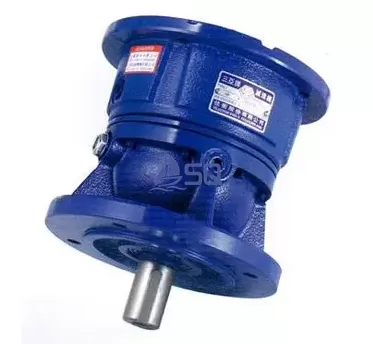

Figure 1-2 Appearance of single-stage vertical cycloid pinwheel planetary reducer


NO.

Dimensions

Installation size

Shaft end size

weight

H

M

J

E

F

G

N

P

Q

R

S

B

C

D

L

b

C

d

Y

BL

BLD

(≈)

BL

BLD

BL, BLD10—19No.


B10

214

165

190



39

10

11

4

140

160

3

M8

8

33

30

35

5

17

15

22

15

BL

weight + motor weight

11

263

194

230

61

12

11

6

170

200

4

M8

10

38

35

46

6

20. 5

18

35

22

12

320

246

260

70

15

11

6

200

230


M8

14

48. 5

45

60


24. 5

22

40

43

13

390

294

340

80

20

13

6

270

310

5

M12

16

59

55

74

8

33

30

55

79

14

465

356

400

101

22

15

8

320

360

5

M12

20

74. 5

70

92

10

38

35

62

127

15

544

431

490


120

30

18

12

400

450

5

M16

25

95

90

113

14

48.5

45

70

200

16

668

528

580


139

35

22

12

460

520

8

M20

28

106

100

130

14

53. 5

50

80

400

17

791

594

650


182

40

22

12

520

590

10

M24

28

116

110

142

16

59

55

90

620

18

1065

814

880


210

50

38

12

680

800

10

M30

32

137

130

202

20

74. 5

70

120

1220

19

1462

1151

1160


370

60

39

12

900

1020

10

M42

45

190

180

330

25

95

90

150

2500


XL、XLD2—12No.


X2

209

159

180


42

12

12

6

130

160

3

M8

8

28

25

34

5

17

15

22

15

BL

weight + motor weight

3

263

194

230


51

15

12

6

170

200

4

M8

10

38

35

46

6

20. 5

18

35

30

4

324

250

260


79

15

12

6

200

230

4

M8

14

48. 5

45

64

6

24. 5

22

40

43

5

427

331

340


93

20

12

6

270

310

4

M12

16

59

55

85

8

33

30

55

88

6

484

377

400

92

22

16

8

316

360

5

M12

18

69

65

81

10

38

35

62

130

7

514

406

430


114

22

18

8

345

390

5

M16

22

85

80

96

12

43

40

65

195

8

585

472

490


112

30

18

12

400

450

6

M16

25

95

90

110

14

48. 5

45

70

245

9

723

571

580


170

35

22

12

455

520

8

M20

28

106

100

132

14

53. 5

50

80

395

10

791

594

650


182

40

22

12

520

590

10

M24

28

116

110

142

16

59

55

90

620

11

1065

814

880


210

50

38

12

680

800

10

M30

32

137

130

202

20

74. 5

70

120

1220

12

1462

1151

1160


370

60

39

12

900

1020

10

M42

45

190

180

330

25

95

90

150

2500


Product Details



Technical Information

The key to Overhead Conveyor Drive''s matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to geared designs that use only limited tooth contact.

It is perfect for demanding applications in food and beverage processing, packaging, agricultural processing, and chemical and pharmaceutical industries.;

Conditions of use

1. Cycloidal pinwheel reducer is allowed to be used in the continuous working system, and it is allowed to run in both forward and reverse directions.

2. The rated rotation speed of the input shaft is 1500 rpm. When the input power is greater than 18.5 kWh, a 960 rpm 6-pole motor is recommended.

3. The working position of the horizontal installation cycloidal pin gear reducer is horizontal. The maximum horizontal tilt angle during installation is generally less than 15 °. When it exceeds 15 °, other measures should be adopted to ensure sufficient lubrication and prevent oil leakage.

4. The output shaft of the cycloid pin gear reducer cannot be subjected to large axial and radial forces. When there are large axial and radial forces, other measures must be taken.


Service

Welcome to consult China Two-stage vertical reducer Cycloid Reducer suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
