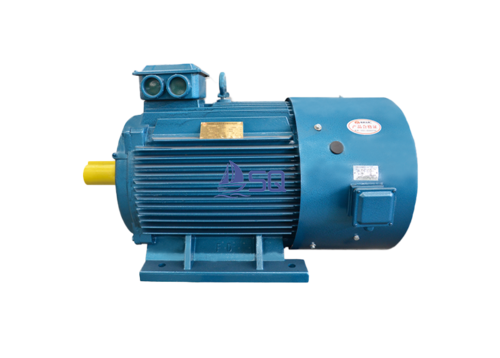

TYPCX series variable frequency speed regulation ultra efficient three-phase permanent magnet synchronous motor (380V H90~355)

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China TYPCX series variable frequency speed regulation ultra efficient three-phase permanent magnet synchronous motor (380V H90~355) Introduction:

Specifications

Brand Name

HS Code

Unit

SET(Sets)

Customed Made

MOQ

Delivery Period

15 days

Description

TYPCX series variable frequency speed regulation ultra efficient three-phase permanent magnet synchronous motor (380V H90~355)

This series of products is of high-efficiency fan or independent fan structure, with a protection level of IP54, F-class insulation, and S1 working system.

The rated voltage of this series of products is 380V, powered by a frequency converter, operating at constant torque below the rated frequency.
This series of products has higher efficiency, wider economic operating range, and significant energy-saving effect compared to asynchronous motors of the same specification in the load range of 25% -120%. The temperature rise of the motor is low, and under rated load, the temperature rise of the motor is 30-50K.
This series of products can completely replace Y2, Y3 and other low-voltage asynchronous motors, and can also be specially designed to increase power density according to user needs.

This series of products is widely used in various equipment such as fans, pumps, compressors, belt conveyors, etc. in the fields of power, petroleum, metallurgy, textiles, building materials, etc.

Permanent magnet synchronous motors use permanent magnets to provide the magnetic field required for electromechanical energy conversion, without the need for excitation power. During synchronous operation, there is almost no current in the rotor, so the copper loss of the rotor is close to zero, and the power factor is greatly improved compared to asynchronous motors. The reactive current in the stator winding is small, and the stator copper loss is reduced. Under the same conditions, the efficiency of permanent magnet synchronous motors is higher than that of asynchronous motors. The actual operating current of permanent magnet synchronous motors decreases by more than 15% compared to asynchronous motors. The temperature rise is reduced by about 20K compared to three-phase asynchronous motors of the same power and speed, and the power factor reaches 0.96 or above. The rated efficiency is increased by 1% to 8% or even higher than that of three-phase asynchronous motors, and the efficiency index meets or exceeds the Class 1 standard of GB30253-2013 "Limited Values and Energy Efficiency Grades for Permanent Magnet Synchronous Motors". Permanent magnet synchronous motors also have significant advantages in other aspects:
1) Synchronous operation, without speed fluctuations, without increasing pipeline resistance loss when dragging fan and pump loads;
2) It can be designed with high starting torque and high overload capacity to solve the problem of "big horses pulling small cars";
3) The range of efficient operation is wide. When the load rate is between 25% -120%, the operating efficiency and power factor do not change much, and the operating efficiency is>85%, and the power factor is>0.9, indicating significant energy-saving effects.
4) High power factor improves the quality factor of the power grid. No reactive compensation device is needed in the power grid, and the capacity of the substation equipment can be fully utilized.
5) Working in conjunction with variable frequency speed control systems, the dynamic response is better than that of asynchronous motors.
6) The power density is high, and at the same power and speed, it can reduce at least one frame number compared to asynchronous motors.
7) The topology of permanent magnet synchronous motors is diverse, achieving customized product services across a wide range and extreme conditions.

型号	额定功率	额定电流	额定频率	同步转速	额定转矩	额定效率	额定功率因素	重量
型号	（kW）	（A）	（HZ）	(r/min)	（N*m）	(%)	额定功率因素	(kg)
TYPCX132S1-8	5.5	9.3	200	3000	17.5	94	0.96	65
TYPCX132S2-8	7.5	12.6	200	3000	23.9	94.5	0.96	70
TYPCX132M-8	11	18.3	200	3000	35.0	95	0.96	78
TYPCX132M-8	15	24.9	200	3000	47.8	95.3	0.96	82
TYPCX160M1-8	11	18.3	200	3000	35.0	95	0.96	80
TYPCX160M2-8	15	24.9	200	3000	47.8	95.3	0.96	85
TYPCX160L-8	18.5	30.6	200	3000	58.9	95.6	0.96	95
TYPCX160L-8	22	36.3	200	3000	70.0	95.9	0.96	100
TYPCX180M-8	22	36.3	200	3000	70.0	95.9	0.96	120
TYPCX180L-8	30	49.4	200	3000	95.5	96.1	0.96	130
TYPCX200L1-8	30	49.4	200	3000	95.5	96.1	0.96	165
TYPCX200L2-8	37	60.8	200	3000	117.8	96.3	0.96	190
TYPCX200L-8	45	73.9	200	3000	143.3	96.4	0.96	210
TYPCX225M-8	45	73.9	200	3000	143.3	96.4	0.96	340
TYPCX225M-8	55	90.2	200	3000	175.1	96.5	0.96	360
TYPCX250M-8	55	90.2	200	3000	175.1	96.5	0.96	435
TYPCX250M-8	75	122.9	200	3000	238.8	96.6	0.96	450
TYPCX280S-8	75	122.9	200	3000	238.8	96.6	0.96	410
TYPCX280M-8	90	147.3	200	3000	286.5	96.7	0.96	562
TYPCX280M-8	110	179.8	200	3000	350.2	96.8	0.96	605
TYPCX280M-8	132	215.8	200	3000	420.2	96.8	0.96	645
TYPCX315S-4	110	179.8	100	3000	350.2	96.8	0.96	560
TYPCX315M-4	132	215.8	100	3000	420.2	96.8	0.96	705
TYPCX315L1-4	160	261.6	100	3000	509.3	96.8	0.96	850
TYPCX315L2-4	200	327.0	100	3000	636.7	96.8	0.96	960
TYPCX315L-4	220	359.7	100	3000	700.3	96.8	0.96	1020
TYPCX315L-4	250	408.7	100	3000	795.8	96.8	0.96	1020
TYPCX355M-4	250	408.7	100	3000	795.8	96.8	0.96	1500
TYPCX355L-4	315	515.0	100	3000	1002.8	96.8	0.96	1700
TYPCX112M-8	4.0	7.0	100	1500	25.5	90.9	0.96	55
TYPCX112M-8	5.5	9.5	100	1500	35.0	92.1	0.96	60
TYPCX132S-8	5.5	9.5	100	1500	35.0	92.1	0.96	70
TYPCX132M-8	7.5	12.8	100	1500	47.8	92.6	0.96	80
TYPCX132M-8	11	18.6	100	1500	70.0	93.6	0.96	85
TYPCX160M-8	11	18.6	100	1500	70.0	93.6	0.96	90
TYPCX160L-8	15	25.3	100	1500	95.5	94.0	0.96	105
TYPCX160L-8	18.5	31.0	100	1500	117.8	94.3	0.96	115
TYPCX180M-8	18.5	31.0	100	1500	117.8	94.3	0.96	115
TYPCX180L-8	22	36.8	100	1500	140.1	94.7	0.96	125
TYPCX180L-8	30	50.0	100	1500	191.0	95.0	0.96	150
TYPCX200L-8	30	50.0	100	1500	191.0	95.0	0.96	150
TYPCX200L-8	37	61.4	100	1500	235.6	95.3	0.96	210
TYPCX225S-8	37	61.4	100	1500	235.6	95.3	0.96	210
TYPCX225M-8	45	74.5	100	1500	286.5	95.6	0.96	350
TYPCX225M-8	55	90.9	100	1500	350.2	95.8	0.96	370
TYPCX250M-8	55	90.9	100	1500	350.2	95.8	0.96	370
TYPCX250M-8	75	123.6	100	1500	477.5	96.0	0.96	400
TYPCX280S-8	75	123.6	100	1500	477.5	96.0	0.96	440
TYPCX280M-8	90	148.1	100	1500	573.0	96.2	0.96	600
TYPCX280M-8	110	180.6	100	1500	700.3	96.4	0.96	635
TYPCX315S-4	110	180.6	50	1500	700.3	96.4	0.96	630
TYPCX315M-4	132	216.5	50	1500	840.4	96.5	0.96	800
TYPCX315L1-4	160	262.4	50	1500	1018.7	96.5	0.96	900
TYPCX315L2-4	200	327.7	50	1500	1273.3	96.6	0.96	950
TYPCX315L-4	220	360.1	50	1500	1400.7	96.7	0.96	1450
TYPCX315S-8	110	180.6	100	1500	700.3	96.4	0.96	630
TYPCX315M-8	132	216.5	100	1500	840.4	96.5	0.96	800
TYPCX315L1-8	160	262.4	100	1500	1018.7	96.5	0.96	900
TYPCX315L2-8	200	327.7	100	1500	1273.3	96.6	0.96	950
TYPCX315L-8	220	360.1	100	1500	1400.7	96.7	0.96	1450
TYPCX355M-4	250	409.2	50	1500	1591.7	96.7	0.96	1650
TYPCX355L-4	315	515.0	50	1500	2005.5	96.8	0.96	1850
TYPCX355L-4	355	580.4	50	1500	2260.2	96.8	0.96	1930
TYPCX355L-4	400	654.0	50	1500	2546.7	96.8	0.96	2010
TYPCX355M-8	250	409.2	100	1500	1591.7	96.7	0.96	1650
TYPCX355L-8	315	515.0	100	1500	2005.5	96.8	0.96	1850
TYPCX355L-8	355	580.4	100	1500	2260.2	96.8	0.96	1930
TYPCX355L-8	400	654.0	100	1500	2546.7	96.8	0.96	2010
TYPCX112M-8	2.2	3.8	66.67	1000	21.0	90.9	0.96	55
TYPCX112M-8	3.0	5.2	66.67	1000	28.7	91.8	0.96	60
TYPCX132S-8	3.0	5.2	66.67	1000	28.7	91.8	0.96	70
TYPCX132M1-8	4.0	6.8	66.67	1000	38.2	92.7	0.96	80
TYPCX132M2-8	5.5	9.3	66.67	1000	52.5	93.4	0.96	85
TYPCX132M-8	7.5	12.6	66.67	1000	71.6	94	0.96	90
TYPCX160M-8	7.5	12.6	66.67	1000	71.6	94	0.96	105
TYPCX160L-8	11	18.4	66.67	1000	105.1	94.5	0.96	115
TYPCX160L-8	15	25.0	66.67	1000	143.3	94.9	0.96	145
TYPCX180L-8	15	25.0	66.67	1000	143.3	94.9	0.96	135
TYPCX180L-8	18.5	30.7	66.67	1000	176.7	95.3	0.96	165
TYPCX180L-8	22	36.4	66.67	1000	210.1	95.6	0.96	185
TYPCX200L1-8	18.5	30.7	66.67	1000	176.7	95.3	0.96	170
TYPCX200L2-8	22	36.4	66.67	1000	210.1	95.6	0.96	195
TYPCX200L-8	30	49.6	66.67	1000	286.5	95.8	0.96	215
TYPCX225M-8	30	49.6	66.67	1000	286.5	95.8	0.96	350
TYPCX225M-8	37	61.0	66.67	1000	353.4	96.0	0.96	370
TYPCX250M-8	37	61.0	66.67	1000	353.4	96.0	0.96	370
TYPCX250M-8	45	74.0	66.67	1000	429.8	96.2	0.96	390
TYPCX280S-12	45	74.0	100	1000	429.8	96.2	0.96	480
TYPCX280M1-12	55	90.4	100	1000	525.3	96.3	0.96	420
TYPCX280M2-12	75	123.1	100	1000	716.3	96.4	0.96	640
TYPCX315S-8	75	123.1	66.67	1000	716.3	96.4	0.96	680
TYPCX315M-8	90	147.6	66.67	1000	859.5	96.5	0.96	830
TYPCX315L1-8	110	180.2	66.67	1000	1050.5	96.6	0.96	880
TYPCX315L2-8	132	216.3	66.67	1000	1260.6	96.6	0.96	920
TYPCX315L-8	160	261.9	66.67	1000	1528.0	96.7	0.96	950
TYPCX315L-8	200	327.0	66.67	1000	1910.0	96.8	0.96	1050
TYPCX315S-12	75	123.1	100	1000	716.3	96.4	0.96	680
TYPCX315M-12	90	147.6	100	1000	859.5	96.5	0.96	830
TYPCX315L1-12	110	180.2	100	1000	1050.5	96.6	0.96	880
TYPCX315L2-12	132	216.3	100	1000	1260.6	96.6	0.96	920
TYPCX315L-12	160	261.9	100	1000	1528.0	96.7	0.96	950
TYPCX315L-12	200	327.0	100	1000	1910.0	96.8	0.96	1050
TYPCX355M1-8	160	261.9	66.67	1000	1528.0	96.7	0.96	1250
TYPCX355M2-8	200	327.0	66.67	1000	1910.0	96.8	0.96	1450
TYPCX355L-8	250	408.3	66.67	1000	2387.5	96.9	0.96	1650
TYPCX355L-8	315	514.0	66.67	1000	3008.3	97.0	0.96	1730
TYPCX355M1-12	160	261.9	100	1000	1528.0	96.7	0.96	1250
TYPCX355M2-12	200	327.0	100	1000	1910.0	96.8	0.96	1450
TYPCX355L-12	250	408.3	100	1000	2387.5	96.9	0.96	1650
TYPCX355L-12	315	514.0	100	1000	3008.3	97.0	0.96	1730
TYPCX132S-8	2.2	3.9	50	750	28.0	90.0	0.96	90
TYPCX132M-8	3	5.2	50	750	38.2	91.0	0.96	95
TYPCX132M-8	4	6.9	50	750	50.9	91.8	0.96	100
TYPCX160M1-8	4	6.9	50	750	50.9	91.8	0.96	120
TYPCX160M2-8	5.5	9.4	50	750	70.0	92.6	0.96	125
TYPCX160L-8	7.5	12.7	50	750	95.5	93.2	0.96	130
TYPCX160L-8	11	18.6	50	750	140.1	93.7	0.96	140
TYPCX180L-8	11	18.6	50	750	140.1	93.7	0.96	150
TYPCX180L-8	15	25.2	50	750	191.0	94.2	0.96	160
TYPCX200L-8	15	25.2	50	750	191.0	94.2	0.96	170
TYPCX200L-8	18.5	31.0	50	750	235.6	94.6	0.96	180
TYPCX200L-8	22	36.7	50	750	280.1	94.9	0.96	190
TYPCX225S-8	18.5	31.0	50	750	235.6	94.6	0.96	210
TYPCX225M-8	22	36.7	50	750	280.1	94.9	0.96	290
TYPCX225M-8	30	49.9	50	750	382.0	95.1	0.96	350
TYPCX250M-8	30	49.9	50	750	382.0	95.1	0.96	380
TYPCX250M-8	37	61.4	50	750	471.1	95.3	0.96	410
TYPCX280S-8	37	61.4	50	750	471.1	95.3	0.96	480
TYPCX280M-8	45	74.6	50	750	573.0	95.5	0.96	530
TYPCX280M-8	55	91.1	50	750	700.3	95.6	0.96	620
TYPCX280S-12	37	61.4	75	750	471.1	95.3	0.96	780
TYPCX280M1-12	45	74.6	75	750	573.0	95.5	0.96	530
TYPCX280M2-12	55	91.1	75	750	700.3	95.6	0.96	600
TYPCX315S-8	55	91.1	50	750	700.3	95.6	0.96	600
TYPCX315M-8	75	124.0	50	750	955.0	95.7	0.96	660
TYPCX315L1-8	90	148.8	50	750	1146.0	95.7	0.96	700
TYPCX315L2-8	110	181.9	50	750	1400.7	95.7	0.96	750
TYPCX315L-8	132	218.1	50	750	1680.8	95.8	0.96	1050
TYPCX315L-8	160	264.3	50	750	2037.3	95.8	0.96	1250
TYPCX315S-12	55	91.1	75	750	700.3	95.6	0.96	950
TYPCX315M-12	75	124.0	75	750	955.0	95.7	0.96	1000
TYPCX315L1-12	90	148.8	75	750	1146.0	95.7	0.96	1150
TYPCX315L2-12	110	181.9	75	750	1400.7	95.7	0.96	1250
TYPCX315L-12	132	218.1	75	750	1680.8	95.8	0.96	1350
TYPCX315L-12	160	263.8	75	750	2037.3	96.0	0.96	1450
TYPCX355M1-8	132	218.1	50	750	1680.8	95.8	0.96	1350
TYPCX355M2-8	160	263.8	50	750	2037.3	96.0	0.96	1450
TYPCX355L-8	200	329.0	50	750	2546.7	96.2	0.96	1650
TYPCX355L-8	220	361.9	50	750	2801.3	96.2	0.96	1730
TYPCX355L-8	250	410.4	50	750	3183.3	96.4	0.96	1840
TYPCX355M1-12	132	218.1	75	750	1680.8	95.8	0.96	1350
TYPCX355M2-12	160	263.8	75	750	2037.3	96.0	0.96	1450
TYPCX355L-12	200	329.0	75	750	2546.7	96.2	0.96	1650
TYPCX355L-12	220	361.9	50	750	2801.3	96.2	0.96	1730
TYPCX355L-12	250	410.4	50	750	3183.3	96.4	0.96	1840
TYPCX315S-12	45	74.6	60	600	716.3	95.5	0.96	900
TYPCX315M-12	55	91.1	60	600	875.4	95.6	0.96	950
TYPCX315L1-12	75	124.0	60	600	1193.8	95.7	0.96	1050
TYPCX315L2-12	90	148.8	60	600	1432.5	95.7	0.96	1150
TYPCX315L-12	110	181.9	60	600	1750.8	95.7	0.96	1250
TYPCX315L-12	132	218.1	60	600	2101.0	95.8	0.96	1350
TYPCX355M1-12	110	181.9	60	600	1750.8	95.7	0.96	1250
TYPCX355M2-12	132	218.1	60	600	2101.0	95.8	0.96	1350
TYPCX355L-12	160	264.3	60	600	2546.7	95.8	0.96	1450
TYPCX355L-12	200	330.4	60	600	3183.3	95.8	0.96	1540
