△ serial wind turbines can also be customized according to the wind area;
△ with optimal strategy control combination of gearbox + high-speed permanent magnet generator
+ full power converter, ensuring good adaptability to the power grid;
△ large bearing + 2-point support transmission chain with compact structure and light weight.
△ with technology of DWM wake analysis and control,
enhancing the operation stability under the influence of wake;
△ adopting cutting-edge technologies of load extrapolation, blade matching of the overall wind turbine,
and active thrust control etc., to realize model upgrade with controllable load;
△ with technologies of modular design, large curved surface component design etc.,
effectively control the cost of wind turbines;
△ all series with anti-typhoon design certification, ensuring the safety of wind turbines in the event of typhoon;
△ with verification of ship grade anti-corrosion test, ensuring 25 years’ service lifespan of the wind turbines.
△ with large power grade span and adjustable flexibility, wind turbine numbers can be customized,
on-site construction volume as well as construction cost controllable;

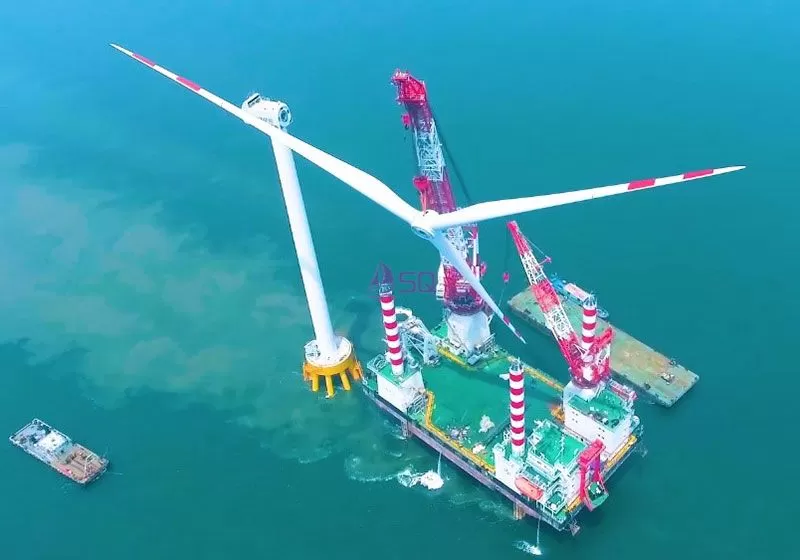

△ the integral hoisting of single blade/wind turbine, pre-assembly in workshop/dock,
to cope with different construction environment and reduce the on-site construction period;
△ customized tower and foundation, with light weight and low cost;
△ with optimal power generation system of medium voltage/low voltage optional,
according to the actual situation of wind farm.
| Rated power | kw | 5000 | Wind class | IEC | I |
| Cut-in wind speed | m/s | 3.5 | Rated wind speed | m/s | 10.6 |
| Cut-out wind speed,mean value of ten minutes | m/s | 25 | Operation temperature low/normal | ℃ |
-20~+40/-10~+40 |
| Survival temperature low/normal | ℃ | -30~+50/-20~+50 | Designed service time | Year | ≥25 |
| Rotor diameter | m | 151 | Swept area | ㎡ | 17908 |
| Generator type | High speed permanent magnet |
|
Rated voltage | V |
690 |
| Converter type | Full power converter |
|
Rated output voltage | V |
690 |
| Tower type | steel tower |
|
Hub height |
|
97 |
