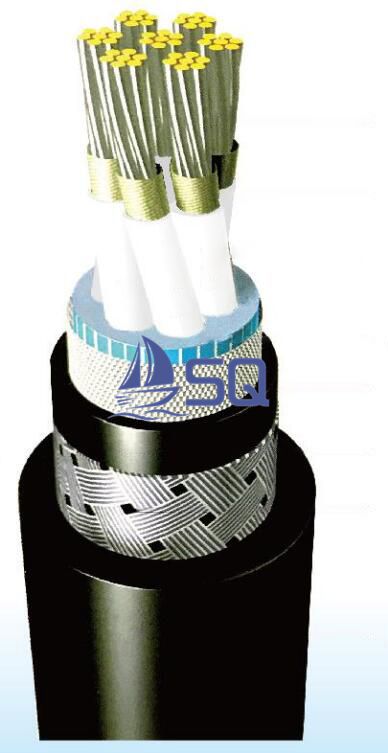

XLPE Insulated Fire Resistant Shipboard Control Cables(Single Sheath)

Application

The shipboard control cables are intended for control system on shipboard and off-shore building.

Standard

IEC60092-350
IEC6092-376
IEC60092-360
IEC60228
IEC60331
IEC60332-1-2
IEC60332-3-22
IEC61034
IEC60754
IEC60684-2

Model

CKJV/NA,/NSA	XLPE insulation PVC sheath fire resistant shipboard control cable,type NA or NSA
CKJV80/NA,/NSA	XLPE insulation PVC inner sheath tinned copper wire braided fire resistant shipboard control cable, type NA or NSA
CKJV90/NA,/NSA	XLPE insulation PVC inner sheath galvanized steel wire braided fire resistant shipboard control cable, type NA or NSA
CKJV82/NA,/NSA	XLPE insulation PVC inner sheath tinned copper wire braided PVC outer sheath fire resistant shipboard control cable,type NA or NSA
CKJV92/NA,/NSA	XLPE insulation PVC inner sheath galvanized steel wire braided PVC outer sheath fire resistant shipboard control cable,type NA or NSA
CKJ82/NA,/NSA	XLPE insulation tinned copper wire braided PVC outer sheath fire resistant shipboard control cable,type NA or NSA
CKJ92/NA,/NSA	XLPE insulation galvanized steel wire braided PVC outer sheath fire resistant shipboard control cable,type NA or NSA
CKJPF/NC,/NSC	XLPE insulation polyolefin sheath low-smoke halogen-free fire resistant shipboard control cable, type NC or NSC
CKJPF80/NC,/NSC	XLPE insulation polyolefin inner sheath tinned copper wire braided low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPF90/NC,/NSC	XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPF86/NC,/NSC	XLPE insulation polyolefin inner sheath galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPF96/NC,/NSC	XLPE insulation galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free fire- resistant shipboard control cable,type NC or NSC
CKJ86/NC,/NSC	XLPE insulation tinned copper wire braided polyolefin outer sheath low-smoke halogen-free fire- retardant shipboard control cable,type NC or NSC
CKJPJ/NC,/NSC	XLPE Insulation cross-linked polyolefin sheath fire resistant shipboard control cable,type NC or NSC
CKJPJ80/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPJ90/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPJ85/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJPJ95/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC orNSC
CKJ85/NC,/NSC	XLPE insulation tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC
CKJ95/NC,/NSC	XLPE insulation galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard control cable,type NC or NSC

Specification

XLPE Insulated Fire Resistant Shipboard Control Cables ( Single sheath ) 150/250V 90°C  CKJ82/NA, CKJ85/NC, CKJ86/NC, CKJ92/NA, CKJ95/NC, CKJ96/NC,CKJ82/NSA( CKJ85/NSC, CKJ86/NSC, CKJ92/NSA
No.of cores x Nominal  Cross sectional area mm2	diameter mm		mass kg/km		diameter mm		mass kg/km
	Nom mm	Max mm	CKJ82/NA CKJ82/NSA	CKJ85/NC CKJ86/NC CKJ85/NSC CKJ86/NSC	Nom mm	Max mm	CKJ92/NA CKJ92/NSA	CKJ95/NC CKJ96/NC CKJ95/NSC CKJ96/NSC
2 x 0.5	8	9.6	90	91	10.1	11.9	144	147
3 x 0.5	8.4	10.1	102	104	10.5	12.3	159	162
4 x 0.5	9	10.8	113	115	11.1	13	172	177
5 x 0.5	9.6	11.5	135	137	11.7	13.7	198	202
6 x 0.5	10.3	12.1	153	156	12.4	14.6	220	225
7 x 0.5	10.3	12.1	154	156	12.4	14.6	221	226
10 x 0.5	12.6	14.8	206	209	14.9	17.5	292	298
12 x 0.5	12.8	15	226	229	15.1	17.4	314	320
14 x 0.5	13.3	15.6	250	253	15.6	17.9	340	346
16 x 0.5	14.2	16.7	288	292	16.3	18.7	376	383
19 x 0.5	14.9	17.5	317	321	17.4	20	434	442
24x0.5	17.1	19.7	403	408	19.5	22.4	523	533
27 x 0.5	17.5	20.1	435	440	19.9	22.9	558	567
30 x 0.5	18.1	20.8	470	475	20.5	23.1	596	606
33 x 0.5	18.7	21.5	511	516	21.1	23.7	641	651
37 x 0.5	19.6	22.5	559	565	22	24.8	694	705
2 x 0.75	8.8	10.6	107	109	10.9	12.8	165	169
3 x 0.75	9.2	11	122	124	11.3	13.3	183	187
4 x 0.75	9.9	11.9	142	145	12	14.1	207	212
5 x 0.75	10.7	12.6	165	168	12.8	15	234	239
6 x 0.75	11.5	13.5	189	192	13.6	16	262	268
7 x 0.75	11.5	13.5	189	192	13.6	16	263	268
10 x 0.75	14.4	16.9	262	266	16.9	19.4	376	383
12 x 0.75	14.6	17.2	289	292	17.1	19.7	404	412
14x0.75	15.3	17.6	321	325	17.8	20.5	441	450
16 x 0.75	16	18.4	363	367	18.5	21.3	488	496
19x0.75	17.1	19.7	419	424	19.5	22.4	539	548
24 x 0.75	19.7	22.7	519	525	22.1	24.9	656	667
27 x 0.75	20.1	22.6	561	567	22.5	25.3	700	711
30 x 0.75	20.7	23.3	606	612	23.1	26	749	760
33 x 0.75	21.5	24.2	662	669	23.9	26.9	810	822
37 x 0.75	22.4	25.2	722	729	24.8	27.9	875	887
2 x 1	9.2	11	119	121	11.3	13.3	180	184
3 x 1	9.6	11.5	137	139	11.7	13.7	200	204
4 x 1	10.4	12.2	162	165	12.5	14.7	230	234
5 x 1	11.2	13.2	188	191	13.3	15.6	260	265
6 x 1	12.1	14.2	217	220	14.4	16.9	300	306
7 x 1	12.1	14.2	220	222	14.4	16.9	303	309
10 x 1	15.2	17.5	304	308	17.7	20.4	424	432
12 x 1	15.4	17.7	338	342	17.9	20.6	459	467
14 x 1	16.1	18.5	377	382	18.6	21.4	503	511
16 x 1	17.3	19.9	448	453	19.7	22.7	570	579
19 x 1	18.1	20.8	495	500	20.5	23.1	622	632
24 x 1	20.8	23.4	614	621	23.2	26.1	758	769
27 x 1	21.2	23.9	667	673	23.6	26.6	812	824
30 x 1	22.2	25	734	741	24.4	27.5	875	887
33 x 1	23	25.9	802	809	25.4	28.6	959	972
37 x 1	23.8	26.8	865	873	26.2	29.5	1027	1041
2 x 1.5	10	12	141	143	12.1	14.2	206	210
3 x 1.5	10.5	12.3	165	167	12.6	14.8	233	238
4x1.5	11.4	13.4	197	199	13.5	15.9	270	275
5 x 1.5	12.3	14.5	230	233	14.6	17.2	314	320
6 x 1.5	13.3	15.6	266	269	15.6	17.9	356	362
7 x 1.5	13.3	15.6	269	272	15.6	17.9	359	366
10x1.5	17.1	19.7	394	399	19.5	22.4	515	524
12 x 1.5	17.3	19.9	439	444	19.7	22.7	560	569
14 x 1.5	18.2	20.9	492	497	20.6	23.2	619	629
16 x 1.5	19.3	22.2	567	573	21.5	24.2	691	701
19 x 1.5	20.3	22.8	629	635	22.7	25.5	770	781
24 x 1.5	23.3	26.2	781	788	25.7	28.9	939	953
27 x 1.5	23.8	26.8	850	858	26.2	29.5	1012	1026
30 x 1.5	24.8	27.9	935	943	27	30.4	1091	1105
33 x 1.5	25.7	28.9	1023	1032	28.1	31.6	1197	1212
37 x 1.5	26.7	30	1108	1117	29.1	32.7	1288	1303
2 x 2.5	11	12.9	177	180	13.1	15.4	248	253
3 x 2.5	11.6	13.6	213	216	13.9	16.3	293	299
4 x 2.5	12.6	14.8	257	260	14.9	17.5	343	350
5 x 2.5	13.9	16.3	311	315	16	18.4	397	404
6 x 2.5	15	17.6	360	364	17.5	20.1	478	486
7 x 2.5	15	17.6	369	373	17.5	20.1	487	495
10 x 2.5	19.3	22.2	538	544	21.5	24.2	662	672
12 x 2.5	19.6	22.5	606	612	22	24.8	742	752
14x2.5	20.5	23.1	681	687	22.9	25.8	823	834
16 x 2.5	21.6	24.3	778	784	24	27	926	938
19 x 2.5	22.9	25.8	880	887	25.3	28.5	1036	1049
24 x 2.5	26.4	29.7	1095	1104	28.8	32.4	1273	1289
27 x 2.5	26.9	30.3	1198	1207	29.3	33	1379	1395
30 x 2.5	28.1	31.6	1321	1330	30.5	34.3	1509	1526
33 x 2.5	29.1	32.7	1449	1459	31.5	35.4	1644	1661
37 x 2.5	30.4	34.2	1588	1599	33.2	37.4	1824	1844
