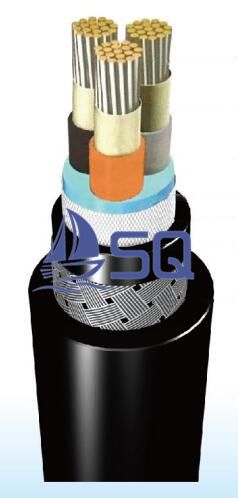

XLPE Insulated Fire Resistant Shipboard Power Cables (Single Sheath)

Application

The shipboard power cables are intended for power,lighting,and control system of shipboard and off-shore building,and it also can be used by metallurgical industry,chemical works,power plant and mine etc.

Standard

IEC692-350
IEC60092-353
IEC60092-360
IEC60228
IEC60331
IEC60332-1-2
IEC60332-3-22
IEC61034
IEC60754
IEC60684-2

Model

CJV/NA,/NSA	XLPE insulation PVC sheath fire resistant shipboard power cable,type NA or NSA
CJV80/NA,/NSA	XLPE insulation PVC inner sheath tinned copper wire braided fire resistant shipboard power cable, type NA or NSA
CJV90/NA,/NSA	XLPE insulation PVC inner sheath galvanized steel wire braided fire resistant shipboard power cable, type NA or NSA
CJV82/NA,/NSA	XLPE insulation PVC inner sheath tinned copper wire braided PVC outer sheath fire resistant shipboard power cable,type NA or NSA
CJV92/NA,/NSA	XLPE insulation PVC inner sheath galvanized steel wire braided PVC outer sheath fire resistant shipboard power cable,type NA or NSA
CJ82/NA,/NSA	XLPE insulation tinned copper wire braided PVC outer sheath fire resistant shipboard power cable,type NA or NSA
CJ92/NA,/NSA	XLPE insulation galvanized steel wire braided PVC outer sheath fire resistant shipboard power cable, type NA or NSA
CJPF/NC,/NSC	XLPE insulation polyolefin sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPF80/NC,/NSC	XI PE insulation polyolefin inner sheath tinned copper wire braided low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPF90/NC,/NSC	XLPE insulation polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPF86/NC,/NSC	XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPF96/NC,/NSC	XLPE insulation polyolefin inner sheath galvanized steel wire braided polyolefin outer sheath Low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJ86/NC,/NSC	XLPE insulation tinned copper wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJ96/NC,/NSC	XLPE insulation galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPJ/NQ/NSC	XLPE insulation cross-linked polyolefin sheath fire resistant shipboard power cable,type NC or NSC
CJPJ80/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided low-smoke halogen- free fire resistant shipboard power cable,type NC or NSC
CJPJ90/NQ/NSC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPJ85/NQ/NSC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJPJ95/NC,/NSC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJ85/NC,/NSC	XLPE insulation galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
CJ95/NC,/NSC	XLPE insulation galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free fire resistant shipboard power cable,type NC or NSC
Note : Cables of NA and NSA type, NC and NSC type have the same structure and property, NSA and NSC type are recommended.

Specification

XLPE Insulated Fire Resistant Shipboard Power Cables(Single sheath)0.6/1kV 90℃ CJ82/NA, C85/NC, CJ86/NC,CU92/NA, CJ95/NC, CJ96/NC, CJ82/NSA, CJ85/NSC, CJ86/NSC,CJ92/NSA, CJ95/NSC,CJ96/NSC
No.of cores x Nominal  Cross sectional area mm2	diameter mm		mass kg/km		diameter mm		mass kg/km
	Nom mm	Max mm	CJ82/NA CJ82/NSA	CJ85/NC CJ86/NC CJ85/NSC CJ86/NSC	Nom mm	Max mm	CJ92/NA CJ92/NSA	CJ95/NC CJ96/NC CJ95/NSC CJ96/NSC
1 X 1	6	7.5	60	61	8	9.6	98	100
1 X 1.5	6.3	7.9	67	69	8.5	10.2	111	114
1 X 2.5	6.8	8.2	83	85	9	10.8	129	132
1 x 4	7.3	8.8	103	105	9.5	11.4	152	155
1 X 6	7.8	9.4	128	129	10	12	179	182
1 X 10	9.2	11	184	186	11.4	13.4	242	246
1 x 16	10.2	12	252	254	12.4	14.6	315	319
1 x 25	12.3	14.5	361	364	14.3	16.8	431	437
1 x 35	13.3	15.6	465	468	15.3	17.6	540	546
1 x 50	14.8	17.4	611	614	17	19.6	710	718
1 x 70	16.8	19.3	824	829	18.7	21.5	915	923
1 x 95	18.7	21.5	1098	1103	20.8	23.4	1207	1217
1 x 120	20.9	23.5	1351	1357	23	25.9	1472	1483
1 x 150	23	25.9	1663	1670	25.1	28.2	1795	1808
1 x 185	25.5	28.7	2041	2049	27.6	31.1	2186	2201
1 x 240	28.3	31.8	2629	2639	30.4	34.2	2789	2806
1 x 300	31.1	35	3221	3233	33.6	37.8	3430	3450
2 x 1	9.7	11.6	128	131	11.9	14	188	193
2 x 1.5	10.3	12.1	147	149	12.5	14.7	209	214
2 x 2.5	11.3	13.3	184	186	13.5	15.9	251	256
2 x 4	12.3	14.5	229	232	14.7	17.3	308	314
2 x 6	13.3	15.6	284	287	15.7	18.1	368	375
2 x 10	16	18.4	413	417	18.5	21.3	529	537
2 x 16	18.3	21	586	591	20.7	23.3	703	712
2 x 25	22.1	24.9	846	853	24.3	27.3	973	985
2 x 35	24.1	27.1	1077	1085	26.5	29.8	1227	1240
2 x 50	26.9	30.3	1404	1413	29.3	33	1569	1584
2 x 70	30.7	34.5	1873	1884	33.5	37.7	2093	2112
2 x 95	34.7	39	2501	2514	37.5	41.3	2747	2770
2 x 120	39.3	43.2	3148	3165	41.9	46.1	3376	3403
2 x 150	43.3	47.6	3861	3880	46.5	51.2	4176	4210
2 x 185	48.3	53.1	4754	4778	51.3	56.4	5080	5119
3 x 1	10.2	12	149	151	12.4	14.6	211	216
3 x 1.5	10.9	12.8	172	175	13.1	15.4	238	243
3 x 2.5	12	14.1	221	224	14.3	16.8	296	302
3 x 4	13	15.3	280	283	15.4	17.7	363	369
3 x 6	14.3	16.8	362	366	16.9	19.4	469	476
3 x 10	17.3	19.9	545	550	19.7	22.7	657	665
3 x 16	19.6	22.5	763	769	22	24.8	888	898
3 x 25	23.5	26.4	1099	1107	25.9	29.1	1245	1258
3 x 35	25.8	29	1432	1440	28.2	31.7	1591	1606
3 x 50	28.8	32.4	1883	1893	31.2	35.1	2059	2076
3 x 70	32.9	37	2529	2541	35.7	39.3	2763	2785
3 x 95	37.4	41.1	3448	3464	40	44	3666	3691
3 x 120	42.1	46.3	4270	4289	45.1	49.6	4557	4589
3 x 150	46.6	51.3	5277	5300	49.6	54.6	5592	5629
3 x 185	52	57.2	6501	6529	55.4	60.9	6904	6950
4 x 1	11.1	13	176	179	13.2	15.5	241	246
4 x 1.5	11.8	13.9	205	208	14.2	16.7	281	287
4 x 2.5	13	15.3	267	270	15.4	17.7	349	355
4 x 4	14.4	16.9	350	354	17	19.6	457	465
4 x 6	15.6	17.9	447	451	18.2	20.9	562	570
4 x 10	18.9	21.7	676	682	21.3	24	797	807
4 x 16	21.5	24.2	959	965	23.9	26.9	1094	1105
4 x 25	26	29.3	1399	1407	28.4	32	1559	1574
4 x 35	28.6	32.2	1833	1843	31	34.9	2008	2025
4 x 50	32	36	2419	2431	34.8	39.2	2648	2668
5 x 1	12	14.1	205	208	14.4	16.9	283	288
5 x 1.5	12.8	15	241	244	15.2	17.5	323	329
5 x 2.5	14.3	16.8	321	325	16.9	19.4	428	435
5 x 4	15.7	18.1	417	421	18.3	21	533	541
5 x 6	17.3	19.9	555	560	19.8	22.8	669	678
5 x 10	20.9	23.5	824	831	23.3	26.2	956	967
5 x 16	23.8	26.8	1174	1181	26.2	29.5	1322	1335
5 x 25	28.8	32.4	1715	1726	31.2	35.1	1891	1908
5 x 35	31.7	35.7	2254	2266	34.5	38.8	2480	2501
5 x 50	35.8	39.4	3039	3054	38.4	42.2	3248	3273
7 x 1	12.9	15.2	236	240	15.3	17.6	319	325
10 x 1	16.1	18.5	337	342	18.6	21.4	18.6	462
12 x 1	16.9	19.4	385	358	19.3	22.2	19.3	503
14 x 1	17.7	20.4	429	434	20.1	22.6	20.1	552
16 x 1	18.6	21.4	486	491	21	23.6	21	614
19 x 1	19.8	22.8	546	552	22.2	25	22.2	682
24 x 1	22.7	25.5	675	682	25.1	28.2	25.1	829
27 x 1	23.2	26.1	732	740	25.6	28.8	25.6	890
30 x1	24	27	794	801	26.4	29.7	26.4	956
33 x 1	25.1	28.2	880	888	27.5	30.9	27.5	1050
37 x 1	26	29.3	948	956	28.4	32	28.4	1123
7 x 1.5	14	16.5	286	290	16.2	18.6	367	373
10 x 1.5	17.6	20.2	421	426	20	23	535	544
12 x 1.5	18.1	20.8	458	463	20.5	23.1	574	584
14 x 1.5	19	21.9	513	518	21.4	24.1	634	644
16 x 1.5	20.2	22.7	593	599	22.6	25.4	721	732
19 x 1.5	21.3	24	657	663	23.7	26.7	791	802
24 x 1.5	24.7	27.8	826	835	26.9	30.3	967	981
27 x 1.5	25.2	28.4	899	907	27.6	31.1	1054	1069
30 x 1.5	26.1	29.4	976	985	28.5	32.1	1137	1152
33 x 1.5	27	30.4	1069	1078	29.4	33.1	1235	1250
37 x 1.5	28.2	31.7	1167	1177	30.6	34.4	1340	1356
7 x 2.5	15.5	17.8	380	384	18.1	20.8	495	503
10 x 2.5	19.8	22.8	570	575	22.2	25	695	706
12 x 2.5	20.4	23	626	632	22.8	25.7	755	766
14 x 2.5	21.4	24.1	704	711	23.8	26.8	839	850
16 x 2.5	22.7	25.5	814	821	25.1	28.2	956	968
19 x 2.5	23.9	26.9	909	916	26.3	29.6	1057	1070
24 x 2.5	27.7	31.2	1142	1152	30.1	33.9	1312	1329
27 x 2.5	28.3	31.8	1249	1259	30.7	34.5	1423	1439
30 x 2.5	29.3	33	1362	1372	31.7	35.7	1541	1558
33 x 2.5	30.6	34.4	1509	1521	33.4	37.6	1728	1748
37 x 2.5	31.8	35.8	1638	1650	34.6	38.9	1865	1886
Note : Cables of 3 cores and 4 cores can be marked as 2*X+E and 3*X+E , E is the yellow&green wire with the same sectional area.
