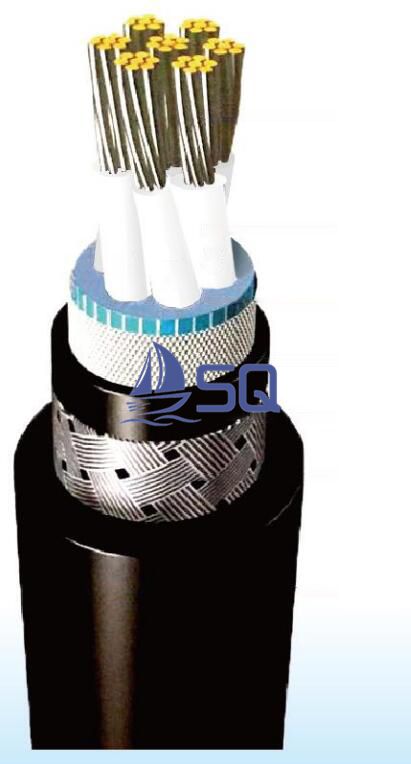

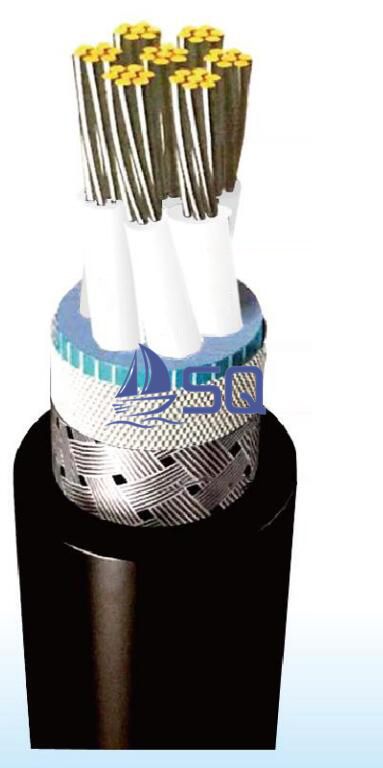

XLPE Insulated Flame Retardant Shipboard Control Cables(Single sheath)

Application

The shipboard control cables are intended for control system on shipboard and off-shore building.

Standard

IEC60092-350
IEC60092-376
IEC60092-360
IEC60228
IEC60332-1-2
IEC60332-3-22
IEC61034
IEC60754
IEC60684-2

Model

CKJV/SA	XLPE insulation PVC sheath flame-retardant shipboard control cable,type SA
CKJV80/SA	XLPE insulation PVC inner sheath tinned copper wire braided flame-retardant shipboard control cable,type SA
CKJV90/SA	XLPE insulation PVC inner sheath galvanized steel wire braided flame-retardant shipboard power cable,type SA
CKJV82/SA	XLPE insulation PVC inner sheath tinned copper wire braided PVC outer sheath flame-retardant shipboard control cable,type SA
CKJV92/SA	XLPE insulation PVC inner sheath galvanized steel wire braided PVC outer sheath flame-retardant shipboard control cable,type SA
CKJ82/SA	XLPE insulation tinned copper wire braided PVC outer sheath flame-retardant shipboard control cable, type SA
CKJ92/SA	XLPE insulation galvanized steel wire braided PVC outer sheath flame-retardant shipboard control cable, type SA
CKJPF/SC	XLPE insulation polyolefin sheath low-smoke halogen-free flame-retardant shipboard control cable, type SC
CKJPF80/SC	XLPE insulation polyolefin inner sheath tinned copper wire braided low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPF90/SC	XLPE insulation polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPF86/SC	XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPF96/SC	XLPE insulation polyolefin inner sheath galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJ96/SC	XLPE insulation galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJ86/SC	XLPE insulation tinned copper wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPJ/SC	XLPE insulation cross-linked polyolefin sheath flame-retardant shipboard control cable,type SC
CKJPJ80/SC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPJ90/SC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPJ85/SC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJPJ95/SC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJ85/SC	XLPE insulation tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC
CKJ95/SC	XLPE insulation galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard control cable,type SC

Specification

XLPE Insulated Flame Retardant Shipboard Control Cables(Single sheath)150/250V 90℃CKJ82/SA, CKJ85/SC, CKJ86/SC, CKJ92/SA, CKJ95/SC, CKJ96/SC
No.of cores x Nominal  Cross sectional area mm2	diameter mm		mass kg/km		diameter mm		mass kg/km
	Nom mm	Max mm	CJPJ80/SC CJPF80/SC	CJPJ90/SC CJPF90/SC	Nom mm	Max mm	CJPJ85/SC CJPF86/SC	CJPJ95/SC CJPF96/SC
2 x 0.5	6.8	8.2	68	70	8.9	10.7	116	119
3 x 0.5	7.1	8.5	77	79	9.2	11	126	130
4x0.5	7.5	9	85	86	9.6	11.5	136	140
5 x 0.5	8	9.6	100	102	10.1	11.9	154	158
6x0.5	8.5	10.2	112	114	10.6	12.5	169	173
7 x 0.5	8.5	10.2	114	116	10.6	12.5	171	175
10 x 0.5	10.2	12	150	153	12.3	14.5	216	221
12 x 0.5	10.3	12.1	163	166	12.4	14.6	230	235
14x0.5	10.8	12.7	181	183	12.9	15.2	250	255
16 x 0.5	11.2	13.2	201	204	13.3	15.6	273	278
19 x 0.5	11.7	13.7	221	224	14	16.5	302	308
24x0.5	13.2	15.5	268	271	15.5	17.8	357	364
27 x 0.5	13.4	15.7	288	291	15.7	18.1	379	385
30 x 0.5	14.1	16.6	318	321	16.2	18.6	405	412
33 x 0.5	14.5	17	344	348	17	19.6	459	466
37 x 0.5	15	17.6	371	374	17.5	20.1	489	496
2 x 0.75	7.4	8.9	81	82	9.5	11.4	132	135
3 x 0.75	7.7	9.2	92	94	9.8	11.8	144	148
4x0.75	8.2	9.8	106	108	10.3	12.1	161	165
5 x 0.75	8.8	10.6	122	124	10.9	12.8	181	185
6 x 0.75	9.4	11.3	139	141	11.5	13.5	201	205
7 x 0.75	9.4	11.3	141	143	11.5	13.5	203	207
10 x 0.75	11.4	13.4	188	191	13.5	15.9	261	266
12 x 0.75	11.5	13.5	206	209	13.6	16	279	285
14x0.75	12.1	14.2	230	233	14.4	16.9	313	319
16 x 0.75	12.6	14.8	257	260	14.9	17.5	343	350
19 x 0.75	13.2	15.5	285	288	15.5	17.8	374	381
24x 0.75	15.1	17.4	353	356	17.6	20.2	471	479
27 x 0.75	15.4	17.7	382	386	17.9	20.6	503	511
30 x 0.75	15.9	18.3	413	417	18.4	21.2	537	546
33 x 0.75	16.8	19.3	469	474	19	21.9	579	587
37 x 0.75	17.3	19.9	505	510	19.7	22.7	626	636
2 x 1	7.8	9.4	92	94	9.9	11.9	145	149
3 x 1	8.1	9.7	106	107	10.2	12	161	164
4x1	8.7	10.4	125	126	10.8	12.7	183	187
5 x 1	9.3	11.2	144	146	11.4	13.4	205	209
6 x 1	10	12	165	167	12.1	14.2	230	235
7 x 1	10	12	169	171	12.1	14.2	234	239
10 x 1	12.2	14.3	227	230	14.5	17	311	317
12 x 1	12.4	14.6	253	255	14.7	17.3	338	344
14x1	12.9	15.2	281	284	15.2	17.5	369	375
16 x 1	13.5	15.9	317	320	15.8	18.2	408	415
19 x 1	14.4	16.9	360	364	16.9	19.4	474	481
24 x 1	16.3	18.7	439	444	18.8	21.6	567	575
27 x 1	16.9	19.4	497	502	19.3	22.2	616	625
30 x 1	17.4	20	538	543	19.8	22.8	660	669
33 x 1	18.1	20.8	587	592	20.5	23.1	714	724
37 x 1	18.7	21.5	636	641	21.1	23.7	766	776
2 x 1.5	8.8	10.6	116	118	10.9	12.8	174	178
3 x 1.5	9.2	11	135	137	11.3	13.3	196	200
4 x 1.5	9.9	11.9	160	162	12	14.1	225	229
5 x 1.5	10.7	12.6	188	190	12.8	15	257	262
6 x 1.5	11.5	13.5	216	218	13.6	16	289	294
7 x 1.5	11.5	13.5	221	224	13.6	16	294	300
10 x 1.5	14.4	16.9	307	310	16.9	19.4	421	428
12 x 1.5	14.6	17.2	343	346	17.1	19.7	458	465
14 x 1.5	15.3	17.6	384	388	17.8	20.5	504	512
16 x 1.5	16	18.4	434	439	18.5	21.3	560	568
19 x 1.5	17.1	19.7	504	509	19.5	22.4	624	634
24 x 1.5	19.7	22.7	627	633	22.1	24.9	763	774
27 x 1.5	20.1	22.6	683	689	22.5	25.3	821	833
30 x 1.5	20.7	23.3	740	747	23.1	26	883	895
33 x 1.5	21.5	24.2	810	817	23.9	26.9	958	970
37 x 1.5	22.4	25.2	888	895	24.8	27.9	1041	1053
2 x 2.5	9.6	11.5	147	150	11.7	13.7	210	215
3 x 2.5	10.1	11.9	178	181	12.2	14.3	244	249
4 x 2.5	10.9	12.8	215	218	13	15.3	285	290
5 x 2.5	11.8	13.9	254	257	14.1	16.6	336	341
6 x 2.5	12.7	14.9	295	298	15	17.6	381	387
7 x 2.5	12.7	14.9	306	309	15	17.6	393	399
10 x 2.5	16	18.4	428	433	18.5	21.3	553	562
12 x 2.5	16.2	18.6	485	489	18.7	21.5	612	620
14x 2.5	17.3	19.9	568	573	19.7	22.7	689	699
16 x 2.5	18.2	20.9	646	651	20.6	23.2	773	782
19 x 2.5	19.3	22.2	735	741	21.5	24.2	859	869
24x 2.5	22.2	25	916	923	24.4	27.5	1056	1068
27x 2.5	22.6	25.4	1002	1010	25	28.1	1157	1170
30 x 2.5	23.4	26.3	1095	1102	25.8	29	1254	1267
33 x 2.5	24.2	27.2	1199	1207	26.6	29.9	1363	1377
37 x 2.5	25.3	28.5	1319	1327	27.7	31.2	1490	1505
