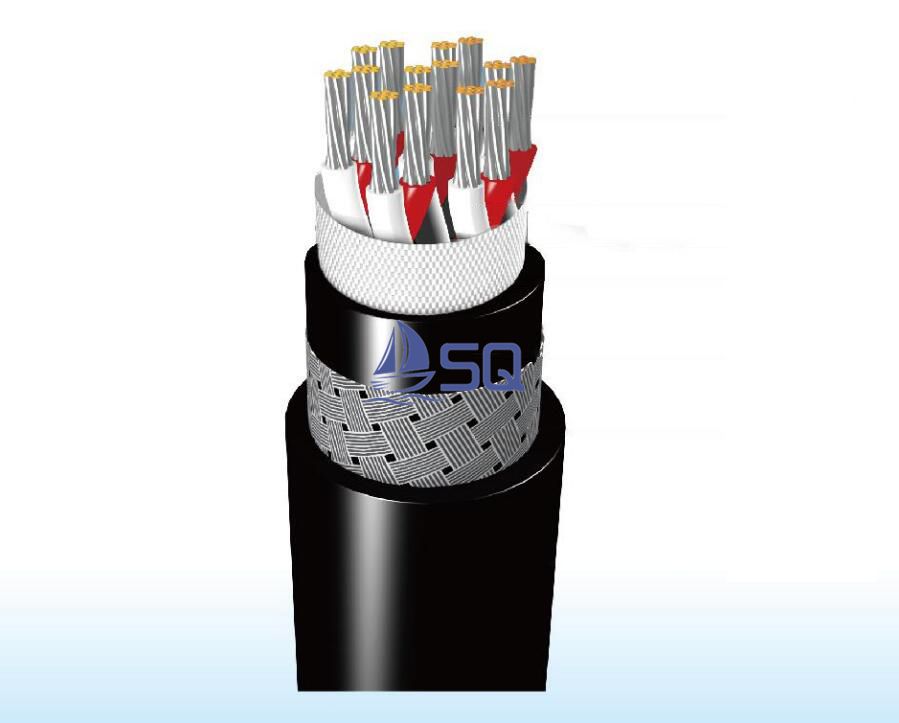

XLPE Insulated Flame Retardant ST2 Symmetrical Communication Cables

Application

The shipboard cables with symmetrical conductors are intended for telecommunication, computer and information proceeding unit of shipboard, of-shore building and naval ship,and it also can be available to metallurgical industry, chemical works, power plant and mine etc.

Standard

IEC60092-350
IEC60092-376
IEC60092-360
IEC60228
IEC60332-1-2
IEC60332-3-22

Model

CHJV/SA	XLPE Insulation PVC sheath flame-retardant shipboard symmetrical communication cable , type SA
CHJV80/SA	XLPE Insulation PVC inner sheath tinned copper wire braided flame-retardant shipboard symmetrical communication cable , type SA
CHJV90/SA	XLPE insulation PVC inner sheath galvanized steel wire braided flame-retardant shipboard symmetrical communication cable , type SA
CHJV82/SA	XLPE insulation PVC inner sheath tinned copper wire braided PVC outer sheath flame-retardant shipboard symmetrical communication cable , type SA
CHJV92/SA	XLPE insulation PVC inner sheath galvanized steel wire braided PVC outer sheath flame-retardant shipboard symmetrical communication cable , type SA
CHJ82/SA	XLPE insulation tinned copper wire braided PVC outer sheath flame-retardant shipboard symmetrical communication cable, , type SA
CHJ92/SA	XLPE insulation galvanized steel wire braided PVC outer sheath flame-retardant shipboard symmetrical communication cable , type SA
CHJPF/SC	XLPE insulation polyolefin sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPF80/SC	XLPE insulation polyolefin inner sheath tinned copper wire braided low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPF90/SC	XLPE insulation polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPF86/SC	XLPE insulation polyolefin inner sheath tinned copper wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPF96/SC	XLPE insulation polyolefin inner sheath galvanized steel wire braided polyolefin outer sheath low- smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJ86/SC	XLPE insulation tinned copper wire braided polyolefin outer sheath low-smoke halogen-free flame­retardant shipboard symmetrical communication cable , type SC
CHJ96/SC	XLPE insulation galvanized steel wire braided polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPJ/SC	XLPE insulation cross-linked polyolefin sheath flame-retardant shipboard symmetrical communication cable , type SC
CHJPJ80/SC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPJ90/SC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPJ85/SC	XLPE insulation cross-linked polyolefin inner sheath tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJPJ95/SC	XLPE insulation cross-linked polyolefin inner sheath galvanized steel wire braided cross- linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJ85/SC	XLPE insulation tinned copper wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC
CHJ95/SC	XLPE insulation galvanized steel wire braided cross-linked polyolefin outer sheath low-smoke halogen-free flame-retardant shipboard symmetrical communication cable , type SC

Specification

XLPE Insulated Flame Retardant Shipboard Symmetrical Communication Cables 150/250V 90℃ CHJV/SA, CHJV80/SA, CHJV90/SA,CHJV82/SA, CHJV92/SA
No.of cores x Nominal  Cross sectional area mm2	diameter mm		mass kg/km	diameter mm		mass kg/km		diameter mm		mass kg/km
	Nom mm	Max mm	CHJV/SA	Nom mm	Max mm	CHJV80/SA	CHJV90/SA	Nom mm	Max mm	CHJV82/SA	CHJV92/SA
1 x 2 x 0.5	6.1	7.6	55	6.9	8.3	89	84	8.8	10.6	119	121
2 x 2 x 0.5	8.3	10	88	9.1	10.9	133	127	11.2	13.2	178	180
3 x 2 x 0.5	8.7	10.4	97	9.5	11.4	144	138	11.6	13.6	191	193
4 x 2 x 0.5	9.4	11.3	115	10.2	12	166	159	12.5	14.7	221	224
5 x 2 x 0.5	10.2	12	141	11.4	13.4	224	214	13.4	15.7	263	257
7 x 2 x 0.5	11.1	13	159	12.3	14.5	249	238	14.3	16.8	291	284
10 x 2 x 0.5	14.1	16.6	224	15.3	17.6	337	323	17.1	19.7	378	386
12 x 2 x 0.5	14.2	16.7	250	15.4	17.7	363	350	17.2	19.8	404	413
14 x 2 x 0.5	15	17.6	280	16.2	18.6	400	386	18.4	21.2	460	469
16 x 2 x 0.5	15.7	18.1	314	16.9	19.4	440	424	19.1	22	502	511
19 x 2 x 0.5	16.8	19.3	360	18	20.7	494	477	20	23	548	558
24 x 2 x 0.5	19.4	22.3	451	20.6	23.7	605	586	22.8	26.2	679	711
27 x2x 0.5	19.8	22.8	491	21	24.2	648	629	23.6	27.1	745	756
30 x 2 x 0.5	20.5	23.6	534	21.7	25	696	676	24.3	27.9	796	808
33 x 2 x 0.5	21.2	24.4	584	22.4	25.8	751	731	25	28.8	854	866
37 x 2 x 0.5	22.2	25.5	644	23.4	26.9	820	798	25.8	29	912	924
1 x 2 x 0.75	6.7	8	66	7.5	9	103	98	9.4	11.3	135	137
2 x 2 x 0.75	9.3	11.2	109	10.1	11.9	159	152	12.2	14.3	208	216
3 x 2 x 0.75	9.8	11.8	121	10.6	12.5	174	167	12.9	15.2	231	233
4 x 2 x 0.75	10.6	12.5	150	11.8	13.9	237	226	13.8	16.2	277	271
5 x 2 x 0.75	11.6	13.6	180	12.8	15	274	263	14.8	17.4	318	311
7 x 2 x 0.75	12.5	14.7	205	13.7	16.1	305	293	15.7	18.1	351	344
10 x 2 x 0.75	16	18.4	289	17.2	19.8	417	401	19.4	22.3	480	489
12 x 2 x 0.75	16.3	18.7	326	17.5	20.1	456	440	19.7	22.7	520	529
14 x 2 x 0.75	17.3	19.9	377	18.5	21.3	514	497	20.5	23.6	570	579
16 x 2 x 0.75	18.2	20.9	425	19.4	22.3	570	552	21.8	25.1	652	663
19 x 2 x 0.75	19.4	22.3	485	20.6	23.7	639	620	22.8	26.2	713	745
24 x 2 x 0.75	22.4	25.8	608	23.6	27.1	785	763	26	29.3	878	890
27 x 2 x 0.75	22.9	26.3	664	24.1	27.7	845	823	26.5	29.8	940	953
30 x 2 x 0.75	23.7	27.3	723	24.9	28.6	910	887	27.7	31.2	1038	1051
33 x 2 x 0.75	24.8	28.5	807	26	29.3	1002	978	29	32.6	1146	1159
37 x 2 x 0.75	25.7	28.9	874	26.9	30.3	1076	1052	29.9	33.6	1225	1239
1x2x1	7.1	8.5	76	7.9	9.5	115	110	9.8	11.8	149	151
2x2x1	9.9	11.9	127	10.7	12.6	180	174	13	15.3	239	241
3x2x1	10.5	12.3	145	11.7	13.7	231	220	13.7	16.1	271	265
4x2x1	11.4	13.4	181	12.6	14.8	274	262	14.6	17.2	317	310
5x2x1	12.4	14.6	219	13.6	16	319	306	15.2	17.5	345	338
7x2x1	13.5	15.9	255	14.7	17.3	363	350	16.7	19.2	412	420
10x2x1	17.5	20.1	371	18.7	21.5	510	493	20.7	23.8	566	576
12 x 2 x 1	17.8	20.5	420	19	21.9	562	544	21	24.2	618	628
14x2x1	18.7	21.5	474	19.9	22.9	623	605	22.3	25.6	707	718
16 x 2 x 1	19.9	22.9	548	21.1	24.3	706	686	23.7	27.3	803	814
19x2x1	21	24.2	616	22.2	25.5	782	762	24.8	28.5	884	896
24 x 2 x 1	24.3	27.9	773	25.5	28.7	964	941	28.7	32.3	1121	1135
27 x 2 x 1	25	28.8	861	26.2	29.5	1058	1034	29.2	32.9	1203	1217
30 x 2 x 1	25.9	29.1	940	27.1	30.5	1144	1119	30.1	33.9	1293	1307
33 x 2 x 1	26.9	30.3	1031	28.1	31.6	1243	1217	31.1	35	1397	1412
37 x 2 x 1	28.1	31.6	1138	29.3	33	1359	1332	32.1	36.1	1502	1517
1 x 2 x 1.5	8.1	9.7	97	8.9	10.7	141	136	10.8	12.7	179	181
2x 2 x1.5	11.6	13.6	167	12.8	15	261	250	14.8	17.4	305	298
3x 2 x1.5	12.2	14.3	190	13.4	15.7	288	276	15.4	17.7	334	326
4x2x15	13.4	15.7	240	14.6	17.2	348	335	16.6	19.1	397	405
5x 2 x1.5	14.9	17.5	305	16.1	18.5	424	409	18.3	21	482	491
7x 2 x1.5	16.2	18.6	355	17.4	20	484	468	19.6	22.5	547	557
10x 2 x1.5	21	24.2	514	22.2	25.5	680	660	24.8	28.5	781	793
12x 2 x1.5	21.3	24.5	584	22.5	25.9	752	732	25.1	28.2	855	867
14x 2 x1.5	22.7	26.1	674	23.9	27.5	854	832	26.3	29.6	947	960
16x 2 x1.5	23.9	27.5	766	25.1	28.2	955	932	27.9	31.4	1084	1097
19x 2 x 1.5	25.4	28.6	875	26.6	29.9	1075	1050	29.6	33.3	1221	1235
24x 2 x1.5	29.4	33.1	1096	30.6	34.4	1327	1299	34.2	38.5	1543	1559
27 x 2 x1.5	30.3	34.1	1221	31.9	35.9	1540	1500	35.1	39.5	1700	1678
30x 2 x1.5	31.4	35.3	1334	33	37.1	1664	1623	36.2	40.7	1830	1806
33 x 2 x1.5	32.8	36.9	1484	34.4	38.7	1828	1786	37.4	42.1	1980	1956
37 x 2 x1.5	34.1	38.4	1615	35.7	40.2	1973	1929	39.5	44.4	2208	2183
1 x 2 x2.5	8.9	10.7	127	9.7	11.6	175	169	11.6	13.6	216	218
2x 2 x2.5	12.9	15.2	224	14.1	16.6	328	316	16.1	18.5	376	368
3x 2 x2.5	13.9	16.3	273	15.1	17.4	384	371	16.9	19.4	424	432
4x 2 x2.5	15.2	17.5	348	16.4	18.9	469	454	18.6	21.4	529	538
5x 2 x2.5	16.8	19.3	438	18	20.7	572	556	20	23	624	634
7x 2 x2.5	18.4	21.2	526	19.6	22.5	672	654	22	25.3	755	766
10x 2 x2.5	23.8	27.4	758	25	28.8	946	923	27.8	31.3	1075	1088
12x 2 x2.5	24.2	27.8	871	25.4	28.6	1062	1038	28.2	31.7	1192	1231
14x 2 x2.5	25.7	28.9	1006	26.9	30.3	1208	1184	29.9	33.6	1357	1371
16x 2 x2.5	27.1	30.5	1146	28.3	31.8	1359	1333	31.3	35.2	1515	1529
19x 2 x2.5	28.8	32.4	1316	30	33.8	1542	1514	33.2	37.4	1725	1740
24x 2 x2.5	33.6	37.8	1670	35.2	39.6	2023	1980	38.2	43	2178	2153
27 x 2 x2.5	34.3	38.6	1841	35.9	40.4	2201	2157	39.7	44.7	2438	2412
30x 2 x2.5	35.8	40.3	2039	37.4	42.1	2414	2368	41	46.1	2637	2611
33 x 2 x2.5	37.2	41.9	2242	38.8	43.7	2632	2584	42.4	47.7	2862	2835
37x 2 x2.5	38.9	43.8	2475	40.5	45.6	2882	2832	43.9	49.4	3098	3070
