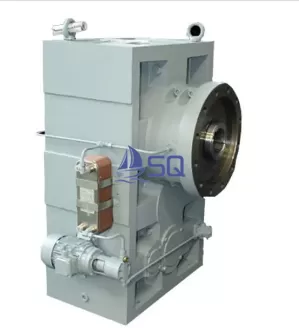

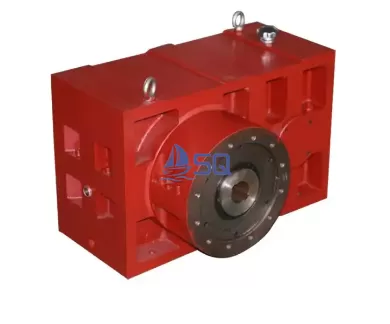

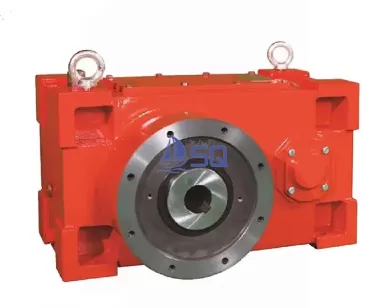

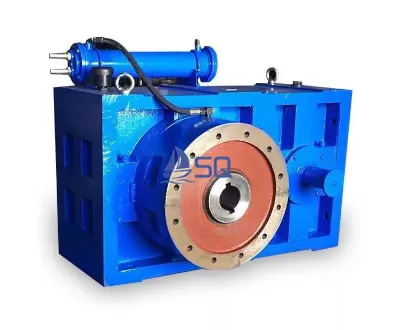

1.ZLYJ series speed reducer is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder.
2.The design of product adapts all kinds of norm specified in ZBJ19009-88/it features that gear and axis parts are made of high strength alloy steel.
3.The gear is processes by carburization, quenching and tooth grinding process.
4.The precision of gear is grade 6 specified in GB1009588.
5.The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working.
6.The complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.
-ZLYJ series reduction gearbox is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder.
-The design of product adapts all kinds of norm specified in ZBJ19009-88/it features that gear and axis parts are made of high strength alloy steel.
-The gear is processes by carburization, quenching and tooth grinding process.
-The precision of gear is grade 6 specified in GB1009588.
-The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working.
-the complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.
1.The gear goes through carburizing and quenching gear grinding.
2.The gearbox can bear larger axial thrust.
3.Distribution box goes through gear cutting by CNC gear hobbing machine and nitrogen treatment.
4.The gearbox all use high-quality skeleton oil seal, and the high speed shaft use double seal with oil seal and mechanical seal.
This ZLYJ gearbox are mainly used in Plastic Extruding Machine, like EPS, PE....
|
Type |
Model |
RatioRange |
AxialThrust |
ScrewDiameter |
NetWeight |
|
(KN) |
(mm) |
(KG) |
|||
|
|
ZLYJ112 |
8/10/12.5 |
41 |
35 |
95 |
|
ZLYJ 133 |
8/10/12.5/14/16/18/20 |
54 |
50 |
144 |
|
|
ZLYJ 146 |
8/10/12.5/14/16/18/20 |
60 |
55 |
205 |
|
|
ZLYJ 173 |
8/10/12.5/14/16/18/20 |
153 |
65 |
256 |
|
|
ZLYJ 200 |
8/10/12.5/14/16/18/20 |
187 |
75 |
500 |
|
|
ZLYJ 225 |
8/10/12.5/14/16/18/20 |
250 |
90 |
650 |
|
|
ZLYJ 250 |
8/10/12.5/14/16/18/20 |
268 |
100 |
815 |
|
|
ZLYJ 280 |
8/10/12.5/14/16/18/20 |
356 |
105,110 |
1020 |
|
|
ZLYJ 315 |
8/10/12.5/14/16/18/20 |
403 |
120 |
1410 |
|
|
ZLYJ 330 |
8/10/12.5/14/16/18/20 |
448 |
130,150 |
1520 |
|
|
ZLYJ 375 |
8/10/12.5/14/16/18/20 |
495 |
150,160 |
1800 |
|
|
ZLYJ 420 |
8/10/12.5/14/16/18/20 |
545 |
165 |
2750 |
|
|
ZLYJ 450 |
8/10/12.5/14/16/18/20 |
590 |
165 |
3560 |
